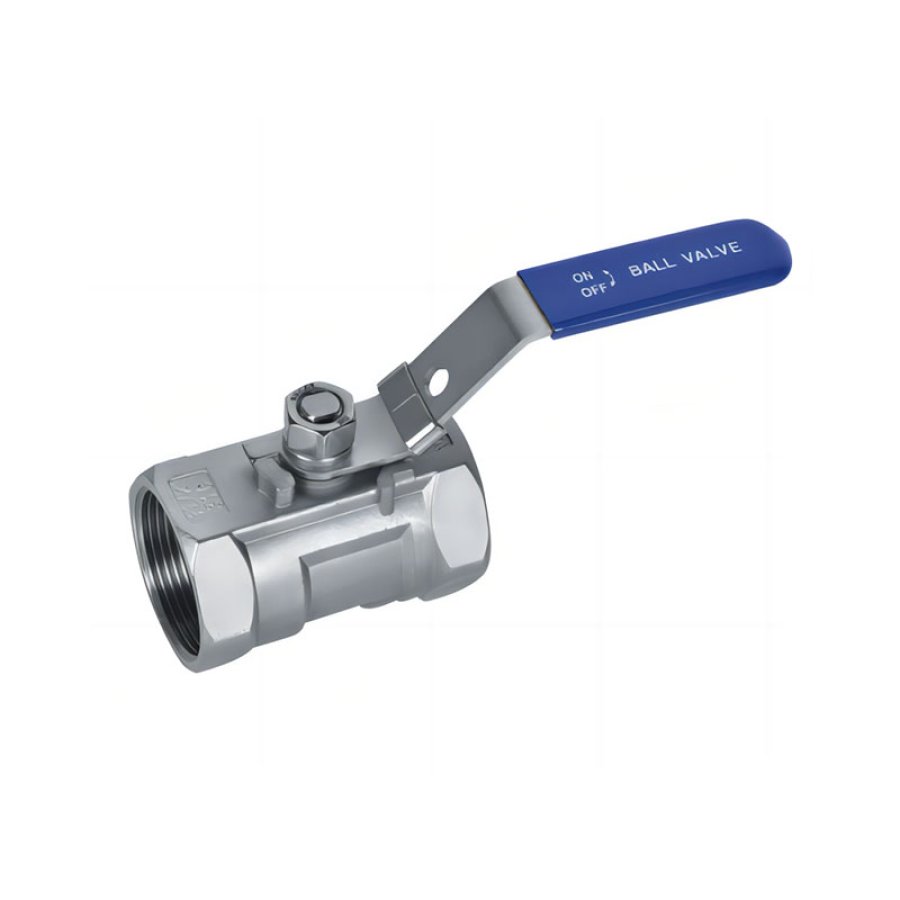

RV-1N
TECHNICAL FEATURES:
Investment castings for body and cap
Internal Entry Blow-Out Proof Stem
Pressure Rating:1000PSI(PN63)
Thread End: ISO, BS, DIN,JIS,ASME
Working pressure:-25°C~+180°C
Material: CF8M.CF8.CF3M,WCB
Inspection Testing:APl 598
Product Details
ITEM | PART | MATERIAL | QTY | ||
1 | BODY | A216-WCB | 1 | ||
2 | CAP | A216-WCB | 1 | ||
3 | SEAT | PTFE | 2 | ||
4 | BALL | 304 | 304 | 316 | 1 |
5 | STEM | 304 | 304 | 316 | 1 |
6 | THRUST WASHER | PTFE | 1 | ||
7 | PACKING | PTFE | 1 | ||
8 | GLAND NUT | 304 | 304 | 316 | 1 |
9 | LOCK | 304 | 304 | 304 | 1 |
10 | HANDLE | 304 | 304 | 304 | 1 |
11 | HANDLE COVER | PLASTIC | 1 | ||
12 | NUT | 304 | 304 | 304 | 1 |
13 | SPRING WASHER | 304 | 304 | 304 | 1 |
DIMENSION LIST
SIZE | φD | L | H | W | N.M | KGS |
1/4″ | 5 | 40 | 32 | 68 | 4 | 0.06 |
3/8″ | 7 | 45 | 33 | 68 | 4 | 0.09 |
1/2″ | 9 | 56 | 42 | 95 | 6 | 0.15 |
3/4″ | 12.5 | 59 | 45 | 95 | 6 | 0.22 |
1″ | 15 | 71 | 48 | 95 | 8 | 0.36 |
1-1/4″ | 20 | 76 | 58 | 106 | 10 | 0.55 |
1-1/2″ | 25 | 84 | 67 | 128 | 14 | 0.86 |
2″ | 32 | 99 | 74 | 130 | 15 | 1.29 |
