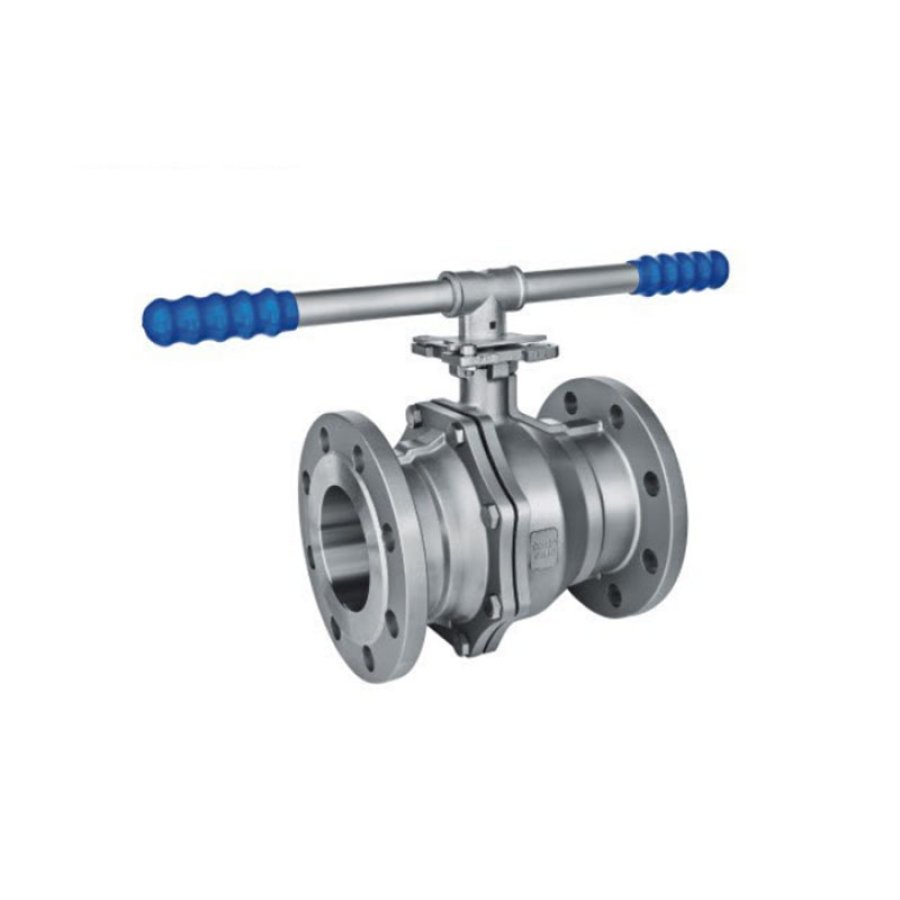

Investment Castings for body and Cap
Internal Entry Blow-Out Proof Stem
Flanged End:DIN EN1092-1 PN10-PN40
Face to Face:DIN3202-F4
Pressur Rating:PN10-PN40
Mounting Pad:1505211
Working Pressure:-25°C~+180°C
Materal:CF8M,CF8,CF3M,WCB
inspection Testing:APl598
MATERIAL LIST
ITEM | PART | MATERIAL | QTY | ||
1 | BODY | A316-WCB | A351-CF8 | A351-CF8M | 1 |
2 | CAP | A316-WCB | A351-CF8 | A351-CF8M | 1 |
3 | BALL | 304 | 304 | 316 | 1 |
4 | BODY SEAT | PTFE | 2 | ||
5 | STEM | 304 | 304 | 316 | 1 |
6 | THRUST WASHER | PTFE | 1 | ||
7 | O-RING | VITON | 1 | ||
8 | PACKING | PTFE | 2 | ||
9 | GLAND | 304 | 1 | ||
10 | BELLEVILLE SPRING | 301 | 2 | ||
11 | NUT | 304 | 1 | ||
12 | NUT STOPPER | 304 | 1 | ||
13 | PLATE WASHER | 304 | 1 | ||
14 | STOP GASKET | 304 | 1 | ||
15 | HANDLE HEAD | CF8 | 1 | ||
16 | HANDLE | 304 | 1 | ||
17 | HANDLE COVER | PLASTIC | 2 | ||
18 | BODY GASKET | PTFE | 1 | ||
19 | BOLT | 304 | 4/6/8 | ||
20/21 | STOP PIN | 304 | 1 | ||
DIMENSION LIST
SIZE | PN | d | D1 | D2 | D3 | H | W | L | T | f | N-d1 | ISO5211 | N.m |
DN125 | 10/16 | 125 | 250 | 210 | 188 | 260 | 600 | 325 | 22 | 3 | 8-18 | F10/F12 | 200 |
25/40 | 270 | 220 | 26 | 8-26 | |||||||||
DN150 | 10/16 | 150 | 285 | 240 | 212 | 278 | 600 | 350 | 22 | 3 | 8-22 | F10/F12 | 300 |
25/40 | 300 | 250 | 218 | 28 | 8-26 | ||||||||
DN200 | 16 | 200 | 340 | 295 | 268 | 340 | 800 | 400 | 24 | 3 | 12-22 | F12/F14 | 400 |
40 | 375 | 320 | 285 | 34 | 12-30 |
