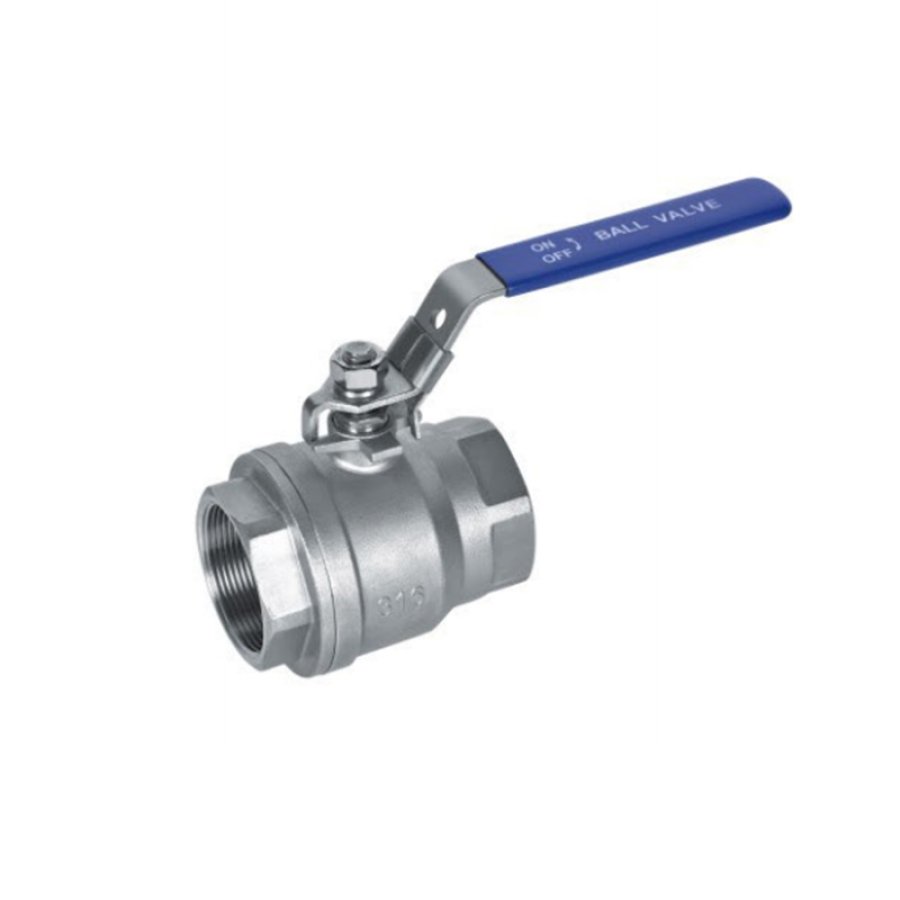

RV-2N
TECHNICAL FEATURES:
Investment Castings for body and Cap
Internal Entry Blow-Out Proof Stem
Pressure Rating:1000PSl(PN63)
Thread End: ISO, BS, DIN,JIS,ASME
Working pressure:-25°C~+180C
Material: CF8M,CF8,CF3M,WCB
InspectionTesting:AP1598
Product Details
MATERIAL LIST
ITEM | PART | MATERIAL | QTY | ||
1 | BODY | A216-WCB | A351-CF8 | A351-CF8M | 1 |
2 | SEAT | PTFE/RPTFE | 2 | ||
3 | BALL | 304 | 304 | 316 | 1 |
4 | GASKET | PTFE | 1 | ||
5 | CAP | A216-WCB | A351-CF8 | A351-CF8M | 1 |
6 | STEM | 304 | 304 | 316 | 1 |
7 | THRUST WASHER | PTFE | 1 | ||
8 | PACKING | PTFE | 1 | ||
9 | GLAND NUT | 304 | 1 | ||
10 | HADLE | 304 | 1 | ||
11 | SPRING WASHER | 304 | 1 | ||
12 | NUT | 304 | 1 | ||
13 | LOCK | 304 | 1 | ||
14 | HANDLE COVER | PLASTIC | 1 | ||
DIMENSION LIST
SIZE | φD | L | H | W | N.M | KGS |
1/4″ | 11 | 50 | 49 | 106 | 4 | 0.19 |
3/8″ | 12.5 | 50 | 49 | 106 | 4 | 0.19 |
1/2″ | 15 | 53 | 51 | 106 | 5 | 0.24 |
3/4″ | 20 | 65 | 58 | 116 | 8 | 0.36 |
1″ | 25 | 73 | 73 | 148 | 10 | 0.58 |
1-1/4″ | 32 | 85 | 79 | 148 | 14 | 0.90 |
1-1/2″ | 38 | 94 | 85 | 182 | 25 | 1.20 |
2″ | 50 | 112 | 95 | 182 | 40 | 1.73 |
2-1/2″ | 65 | 147 | 126 | 252 | 48 | 3.83 |
3″ | 76 | 172 | 138 | 252 | 80 | 5.74 |
4″ | 94 | 220 | 158 | 283 | 103 | 10.70 |
