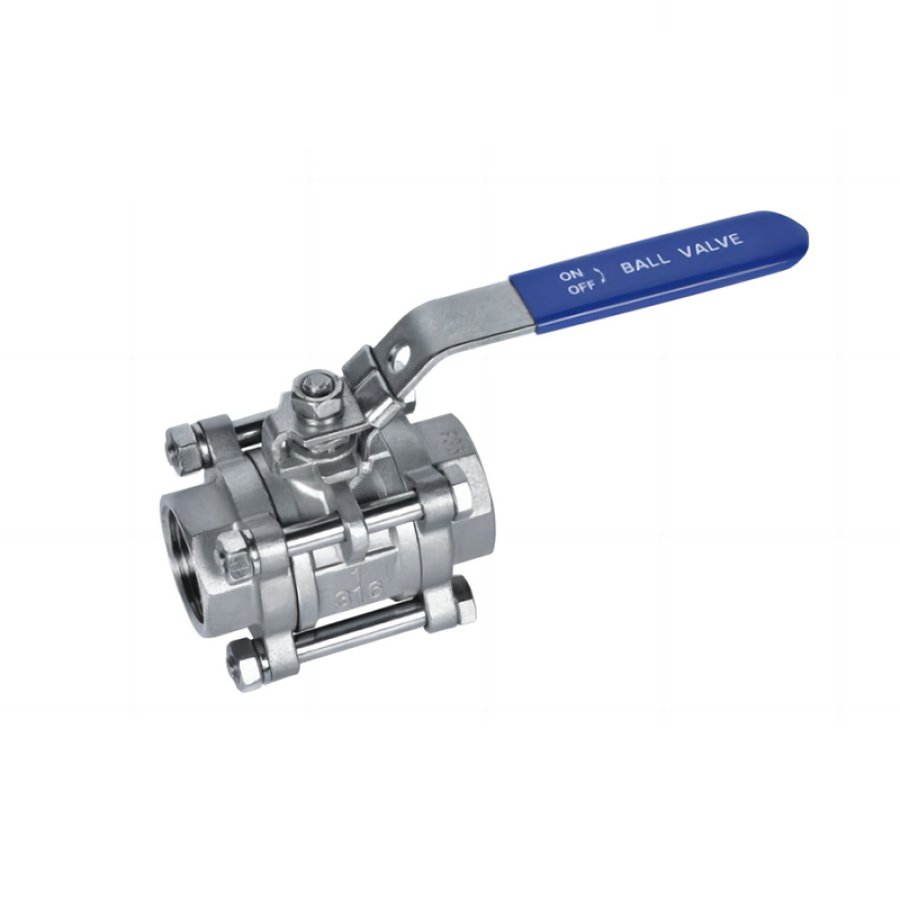

Nvestment Castings for body and Cap
Internal Entry Blow-Out Proof Stem
Pressure Rating: 1000PSl(PN63)
Thread End: ISO, BS, DIN,JIS, ASME
Working pressure:-25°C+180°C
Material: CF8M,CF8,CF3M,WCB
Inspection Testing: APl 598
MATERIAL LIST
ITEM | PART | MATERIAL | QTY | ||
1 | BODY | A216-WCB | A351-CF8 | A351-CF8 | 1 |
2 | BALL | 304 | 304 | 316 | 1 |
3 | SEAT | PTFE/RPTFE | 2 | ||
4 | THRUST WASHER | PTFE | 1 | ||
5 | GASKET | PTFE | 2 | ||
6 | PACKING | PTFE | 1 | ||
7 | GLANDNUT | 304 | 1 | ||
8 | STEM | 304 | 304 | 316 | 1 |
9 | SPRING | 304 | 1 | ||
10 | NUT | 304 | 1 | ||
11 | HANDLE | 304 | 1 | ||
12 | LOCK | 304 | 1 | ||
13 | HANDLE COVER | PLASTIC | 1 | ||
14 | CAP | A216-WCB | A351-CF8 | A351-CF8M | 1 |
15 | SPRING WANSHER | 304 | 4/6 | ||
16 | NUT | 304 | 4/6 | ||
17 | BOLT | 304 | 4/6 | ||
DIMENSION LIST
SIZE | φD | L | H | W | N.M | KGS |
1/4″ | 11 | 51 | 43.5 | 103 | 5 | 0.29 |
3/8″ | 12.5 | 51 | 44.5 | 103 | 5 | 0.29 |
1/2″ | 15 | 63 | 50 | 103 | 6 | 0.43 |
3/4″ | 20 | 71 | 59 | 127 | 10 | 0.61 |
1″ | 25 | 80 | 61 | 127 | 12 | 0.80 |
1-1/4″ | 32 | 94 | 79 | 154 | 17 | 1.43 |
1-1/2″ | 38 | 103 | 83 | 154 | 30 | 1.73 |
2″ | 50 | 126 | 94 | 195 | 48 | 2.72 |
2-1/2″ | 65 | 158 | 135 | 244 | 58 | 5.44 |
3″ | 76 | 179 | 144 | 244 | 96 | 7.64 |
4″ | 94 | 213 | 149 | 285 | 124 | 15.78 |
