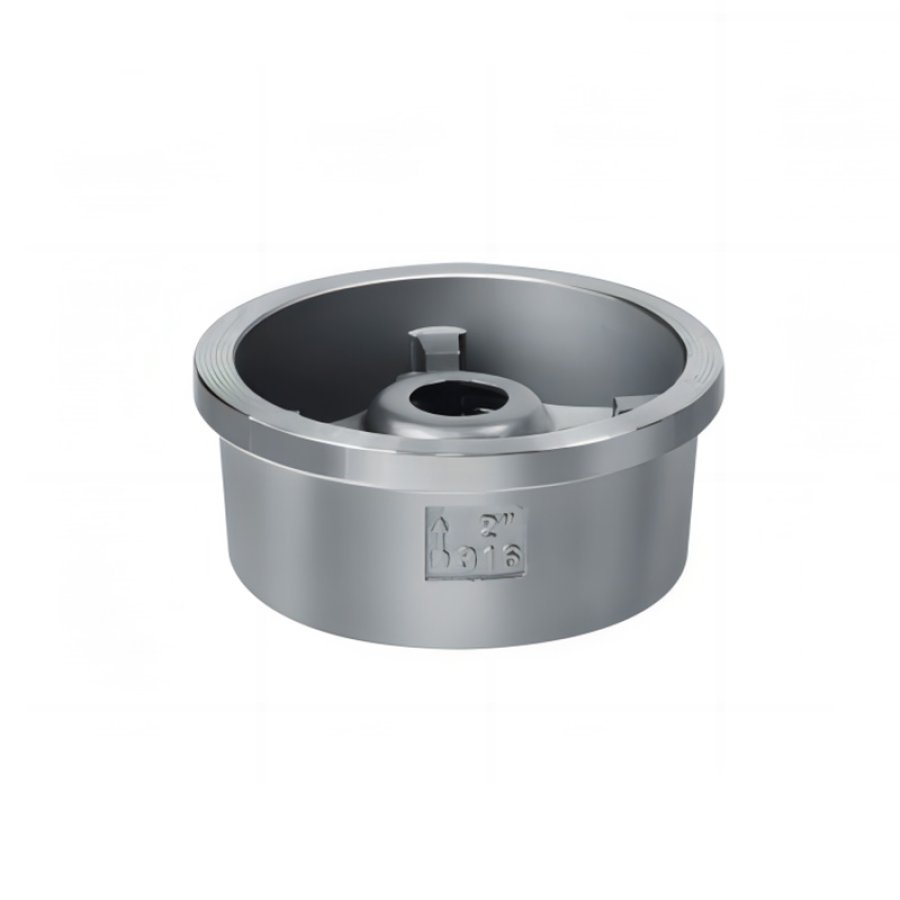

RVT-CW
TECHNICAL FEATURES:
Investment Castings for body and Cap
Flanged End: DIN EN1092-1 PN10~PN40
ANSIB16.5 CLASS150/300
Face to Face: DlN3202-K4
Pressure Rating: PN40
Material: CF8M,CF8,CF3M,WCB
Product Details
MATERIAL LIST
ITEM | PART | MATERIAL | QTY | |
1 | BODY | A351-CF8 | A351-CF8M | 1 |
2 | CAP | A351-CF8 | A351-CF8M | 1 |
3 | SPRING | 304 | 316 | 1 |
4 | DISC | 304 | 316 | 1 |
DIMENSION LIST
SIZE | d | D | D1 | D2 | L | H | KGS | |
DN15 | 1/2″ | 15 | 39 | 28.5 | 32 | 16 | 3 | 0.09 |
DN20 | 3/4″ | 20 | 46 | 36.2 | 40 | 19 | 3 | 0.12 |
DN25 | 1″ | 25 | 54 | 43.3 | 46 | 21 | 3 | 0.16 |
DN32 | 1-1/4″ | 32 | 70 | 56 | 60 | 27 | 3.5 | 0.31 |
DN40 | 1-1/2″ | 40 | 83 | 68.5 | 72 | 31 | 3.5 | 0.43 |
DN50 | 2″ | 49 | 96 | 80.5 | 84 | 40 | 4 | 0.78 |
DN65 | 2-1/2″ | 62 | 115 | 99 | 103 | 46 | 5 | 1.03 |
DN80 | 3″ | 75 | 135 | 117 | 123 | 50 | 5 | 1.54 |
DN100 | 4″ | 85 | 153 | 135 | 140 | 60 | 6 | 2.25 |
