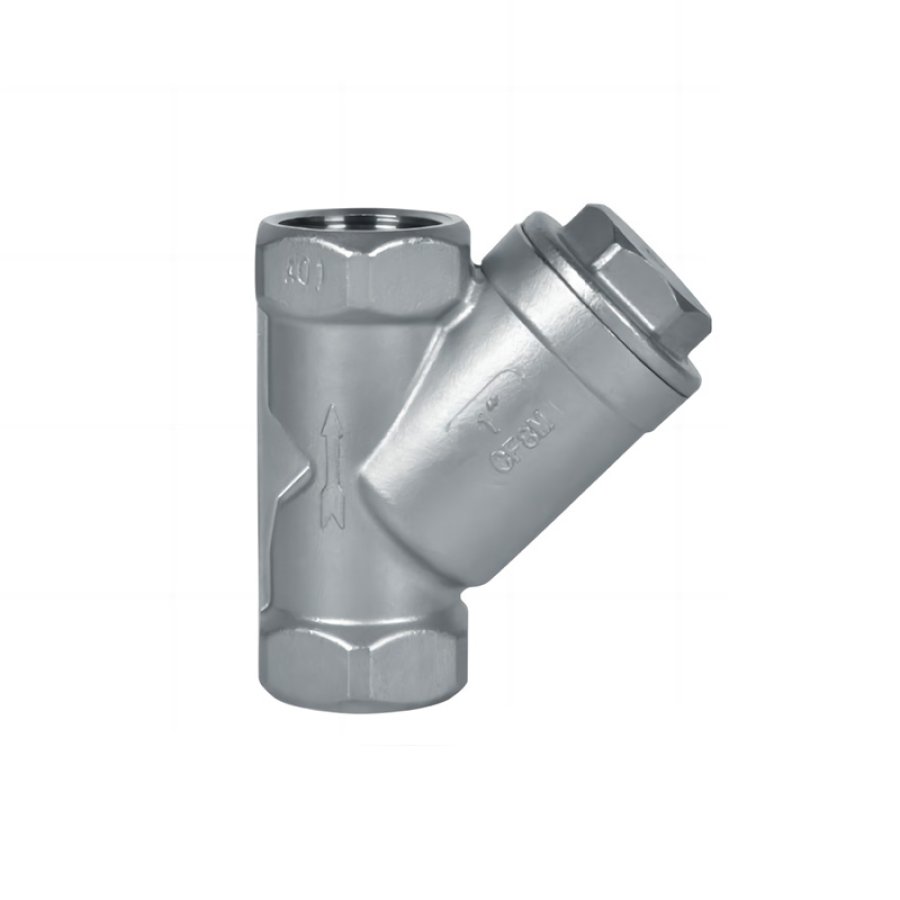

RVT-Y
TECHNICAL FEATURES:
Investment Castings for body and Cap
Thread End: ISO, BS, DIN,JIS,ASME
Pressure Rating: 800PSI(PN40)
Working pressure: -25°C+180°C
Material: CF8M,CF8,CF3M,WCB
Product Details
MATERIAL LIST
ITEM | PART | MATERIAL | QTY | ||
1 | BODY | A216-WCB | A351-CF8 | A351-CF8M | 1 |
2 | SCREEN | 304 | 304 | 316 | 1 |
3 | GASKET | 304 | 304 | 316 | 1 |
4 | CAP | 304 | 304 | 316 | 1 |
DIMENSION LIST
SIZE | d | L | H | W | φA | KGS | |
DN6 | 1/4″ | 10 | 64 | 43 | 2 | 1 | 0.20 |
DN10 | 3/8″ | 12 | 64 | 43 | 2 | 1 | 0.17 |
DN15 | 1/2″ | 15 | 64 | 43 | 2 | 1 | 0.20 |
DN20 | 3/4″ | 20 | 80 | 50 | 2 | 1 | 0.33 |
DN25 | 1″ | 25 | 90 | 65 | 2 | 1 | 0.58 |
DN32 | 1-1/4″ | 32 | 106 | 69 | 2 | 1 | 0.75 |
DN40 | 1-1/2″ | 40 | 119 | 79 | 2 | 1 | 1.05 |
DN50 | 2″ | 50 | 140 | 94.5 | 2 | 1 | 1.57 |
