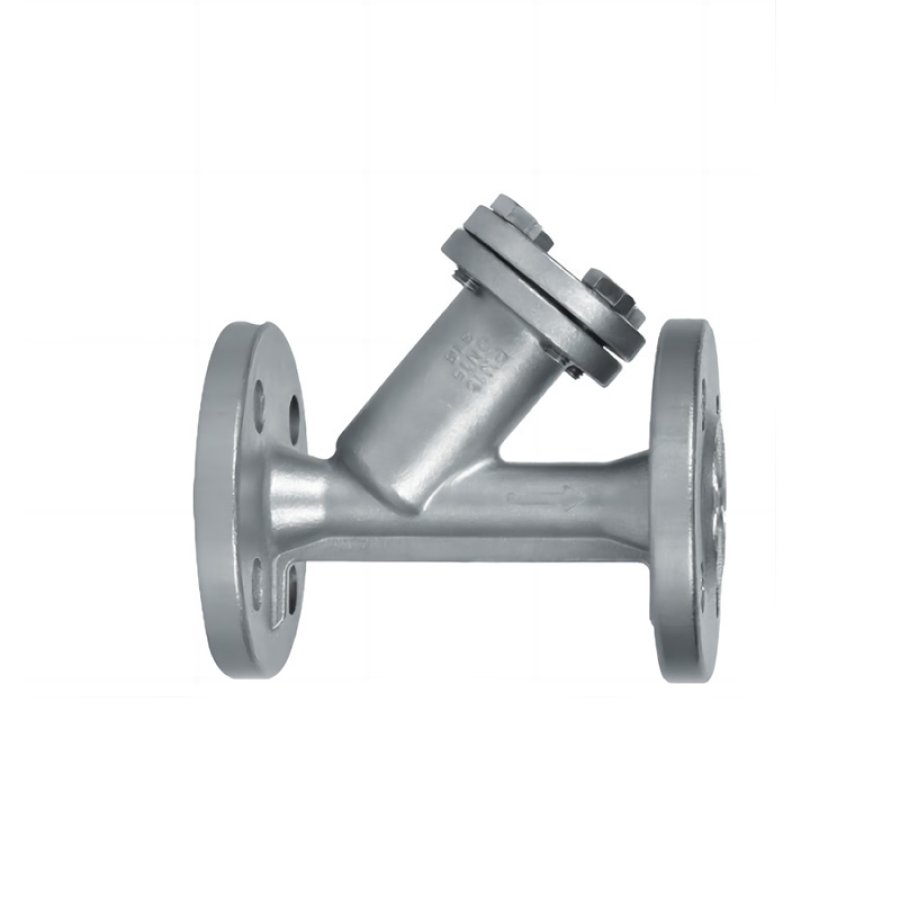

RVT-YF-D
TECHNICAL FEATURES:
Investment Castings for body and Cap
Flanged End: DIN2501 PN16
Face to Face: DIN3202 F1
Pressure Rating: PN16
Working pressure: -25°C+180°C
Material: CF8M,CF8,CF3M,WCB
WITH BLOW-OFF FROM DN32
Product Details
ITEM | PART | MATERIAL | QTY | ||
1 | BODY | A216-WCB | A351-CF8 | A351-CF8M | 1 |
2 | SCREEN | 304 | 304 | 316 | 1 |
3 | GASKET A | PTFE | 1 | ||
4 | CAP | A216-WCB | A351-CF8 | A351-CF8M | 1 |
5 | BONNET BOLT | 304 | 4/6/8/10 | ||
6 | GASKET B | PTFE | 1 | ||
7 | STOPPER | A216-WCB | A351-CF8 | A351-CF8M | 1 |
DIMENSION LIST
SIZE | d | A | C | D | G | L | T | f | N-M |
DN15 | 15 | 75 | 65 | 95 | 45 | 130 | 14 | 2 | 4-φ14 |
DN20 | 20 | 90 | 75 | 105 | 58 | 150 | 16 | 2 | 4-φ14 |
DN25 | 25 | 100 | 85 | 115 | 68 | 160 | 16 | 2 | 4-φ14 |
DN32 | 32 | 115 | 100 | 140 | 78 | 180 | 16 | 2 | 4-φ18 |
DN40 | 40 | 130 | 110 | 150 | 88 | 200 | 16 | 3 | 4-φ18 |
DN50 | 50 | 150 | 125 | 165 | 102 | 230 | 18 | 3 | 4-φ18 |
DN65 | 65 | 190 | 145 | 185 | 122 | 290 | 18 | 3 | 4-φ18 |
DN80 | 80 | 225 | 160 | 200 | 138 | 310 | 20 | 3 | 8-φ18 |
DN100 | 100 | 230 | 180 | 220 | 158 | 350 | 20 | 3 | 8-φ18 |
DN125 | 125 | 280 | 210 | 250 | 188 | 400 | 22 | 3 | 8-φ18 |
DN150 | 150 | 300 | 240 | 285 | 212 | 480 | 22 | 3 | 8-φ22 |
DN200 | 200 | 400 | 295 | 340 | 268 | 605 | 24 | 3 | 12-φ22 |
