Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |

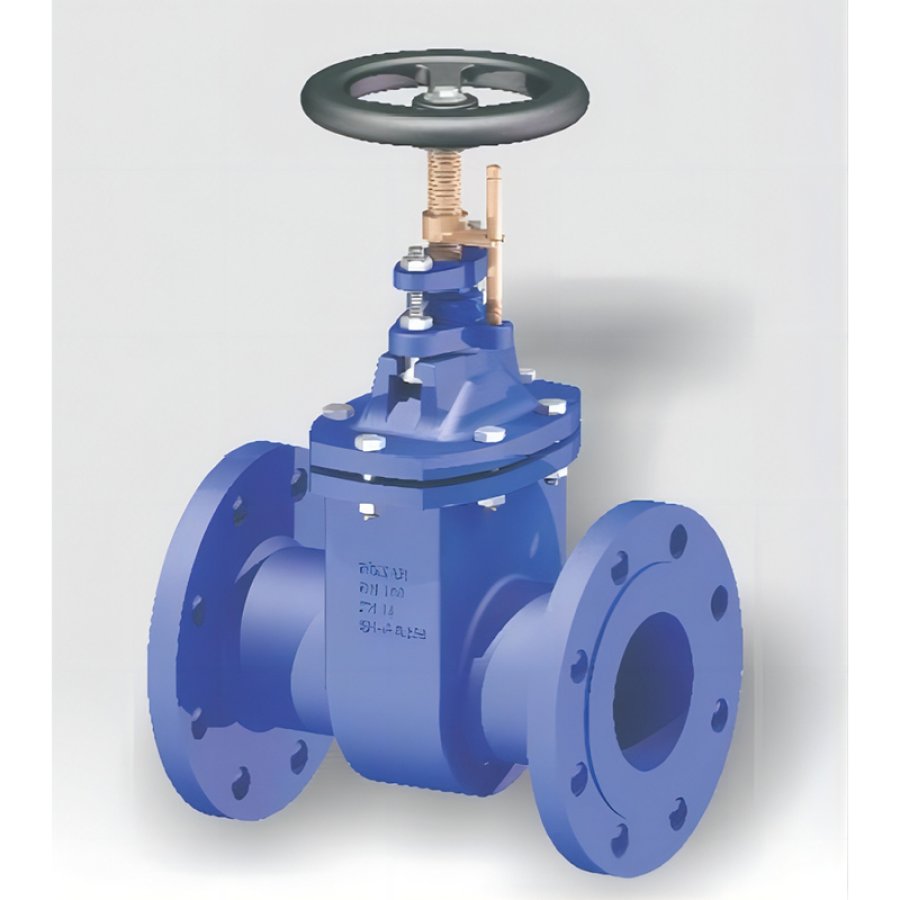

GATE VALVE-NON RISING STEM LONG TYPE-F5-WITH INDICATOR | PN10/PN16 | 40-1500 | freshwater,seawater,lubricaiting oll. |
Material of Main Parts:
Item | Parts Name | Material |
1 | Body | Cast iron /Ductile iron |
2 | Stem/seat | Bronze or Stainless stedl |
3 | Design | DINEN 1171 (DIN 3352 T2)-with Indicator |
4 | Face to Face | EN558 Series 15(DIN3202F5) |
5 | Flange Dimension | DIN Flanges acc.to EN 1092-2B(DIN 2501) |
6 | Temperature | -10℃~+120℃ |
DIMENSIONS：
DN（mm） | OD PN10 | OD PN16 | L（mm） | H（mm） | OR（mm） | Weight （kg） |
40 | 150 | 150 | 240 | 310 | 200 | 13 |
50 | 165 | 165 | 250 | 310 | 200 | 14 |
65 | 185 | 185 | 270 | 360 | 250 | 19 |
80 | 200 | 200 | 280 | 380 | 250 | 25 |
100 | 220 | 220 | 300 | 430 | 315 | 30 |
125 | 250 | 250 | 325 | 495 | 315 | 48 |
150 | 285 | 285 | 350 | 545 | 315 | 60 |
200 | 340 | 340 | 400 | 625 | 400 | 97 |
250 | 395 | 405 | 450 | 680 | 500 | 165 |
300 | 445 | 460 | 500 | 900 | 500 | 235 |
350 | 505 | 520 | 550 | 995 | 500 | 330 |
400 | 565 | 580 | 600 | 1060 | 630 | 440 |
450 | 615 | 640 | 650 | 1225 | 630 | 585 |
500 | 670 | 715 | 700 | 1320 | 800 | 787 |
600 | 780 | 840 | 800 | 1485 | 800 | 1060 |
700 | 895 | 910 | 900 | 1685 | 800 | 1330 |
800 | 1015 | 1025 | 1000 | 1900 | 800 | 2300 |
900 | 1115 | 1125 | 1100 | 2125 | 1000 | 3400 |
1000 | 1230 | 1255 | 1200 | 2400 | 1000 | 4300 |
1500 | 1785 | 1820 | 1700 | 3300 | 1200 | 8400 |
