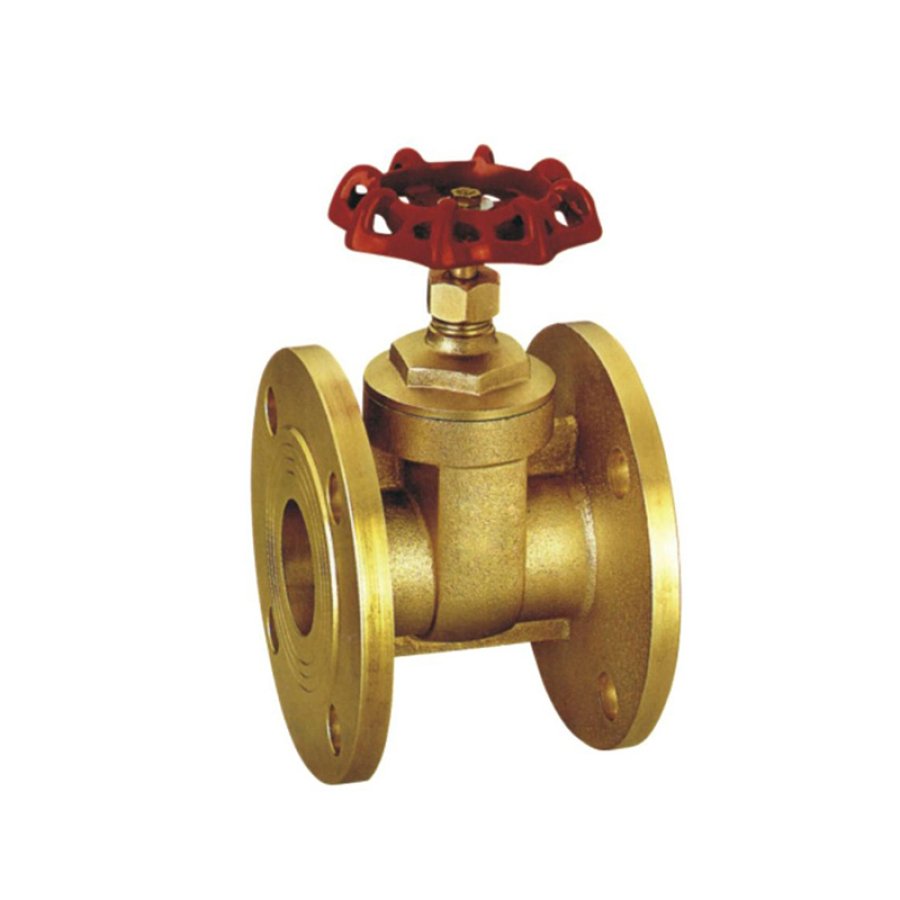

DIN-GATE VALVE-NON RISING STEM SCREWED BONNET-FLANGED ENDS
Product Details
Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |
GATE VALVE -NON RISING STEM SCREWED BONNET -FLANGED ENDS | PN16 | 15-100 | Water,saturated steam andother neutral meda |
Material of Main Parts:
Item | Parts Name | Material |
1 | Body | Bronze |
2 | Stem/seat | Bronze |
3 | Design | DIN86720 (DIN 3552 T11)-flat fianges |
4 | Face to Face | EN558 Series 47(DIN3202F19) |
5 | Flange Dimension | DIN Flanges acc.to EN 1092-3/A(DIN 2501) |
6 | Temperature | -10℃~+120℃ |
DIMENSIONS：
DN（mm） | PressuR OD rating(mm) | L（mm） | H（mm） | OR（mm） | Weight （kg） |
15 | PN 16 95 | 75 | 90 | 63 | 1.8 |
20 | PN 16 105 | 75 | 105 | 63 | 2.4 |
25 | PN 16 115 | 80 | 115 | 80 | 2.8 |
32 | PN 16 140 | 90 | 130 | 90 | 4.7 |
40 | PN 16 150 | 100 | 150 | 90 | 5.8 |
50 | PN 16 165 | 110 | 180 | 125 | 7.9 |
65 | PN 16 185 | 130 | 220 | 140 | 11.7 |
80 | PN 16 200 | 150 | 250 | 160 | 17.2 |
100 | PN 16 220 | 160 | 315 | 160 | 23.6 |
