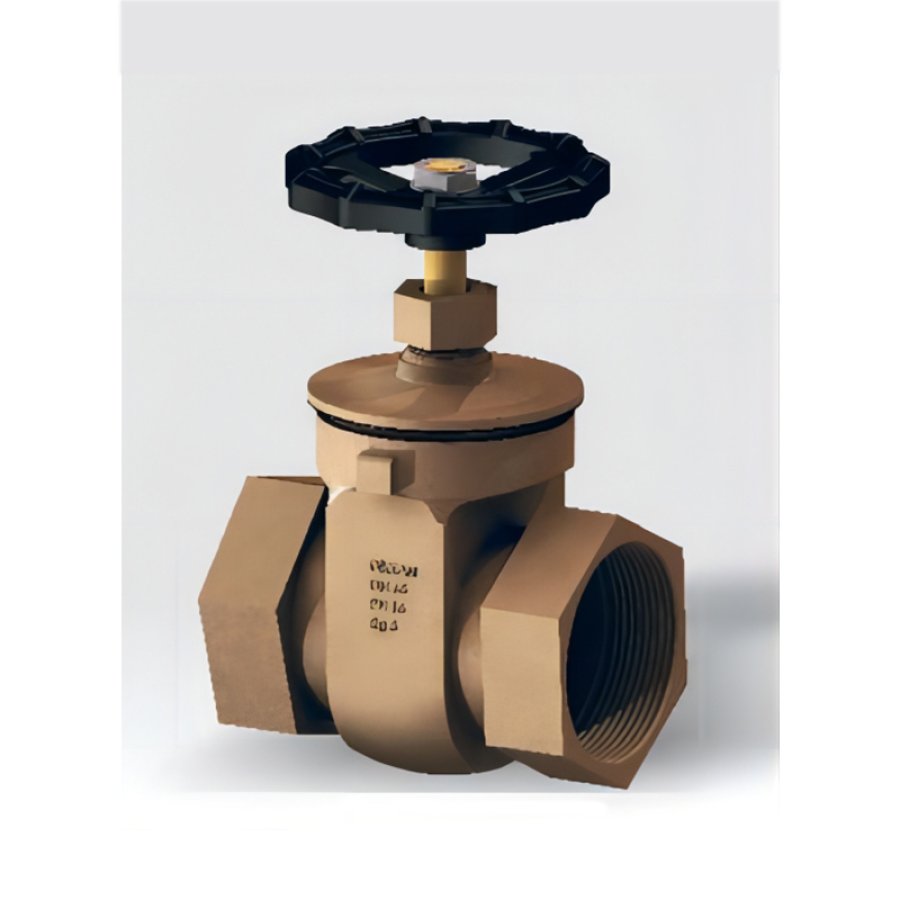

DIN-GATE VALVE-NON RISING STEM SCREWED BONNET-THREADED ENDS
Product Details
Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |
GATE VALVE -NON RISING STEM SCREWED BONNET -THREADED ENDS | PN16 | 15-100 | Water and other neutral media. |
Material of Main Parts:
Item | Parts Name | Material |
1 | Body | Bronze |
2 | Stem/seat | Bronze |
3 | Design | DIN 3552 T12 |
4 | Face to Face | DIN3202M14 |
5 | Flange Dimension | BSP-female acc.to DIN EN10226-1 (DIN 2999) |
6 | Temperature | -10℃~+150℃ |
DIMENSIONS：
DN（mm） | G（mm） | L（mm） | LL（mm） | H（mm） | OR（mm） | Weight （kg） |
15 | 1/2 | 55 | 63 | 85 | 63 | 0.55 |
20 | 3/4 | 60 | 65 | 105 | 63 | 0.71 |
25 | 1 | 68 | 75 | 115 | 80 | 1.13 |
32 | 1.4 | 76 | 90 | 130 | 90 | 1.68 |
40 | 1.2 | 80 | 97 | 150 | 90 | 2.3 |
50 | 2 | 93 | 105 | 180 | 125 | 2.5 |
65 | 2.2 | 110 | - | 220 | 140 | 4.0 |
80 | 3 | 120 | - | 250 | 160 | 6.0 |
100 | 4 | 160 | - | 320 | 160 | 9.0 |
