Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |

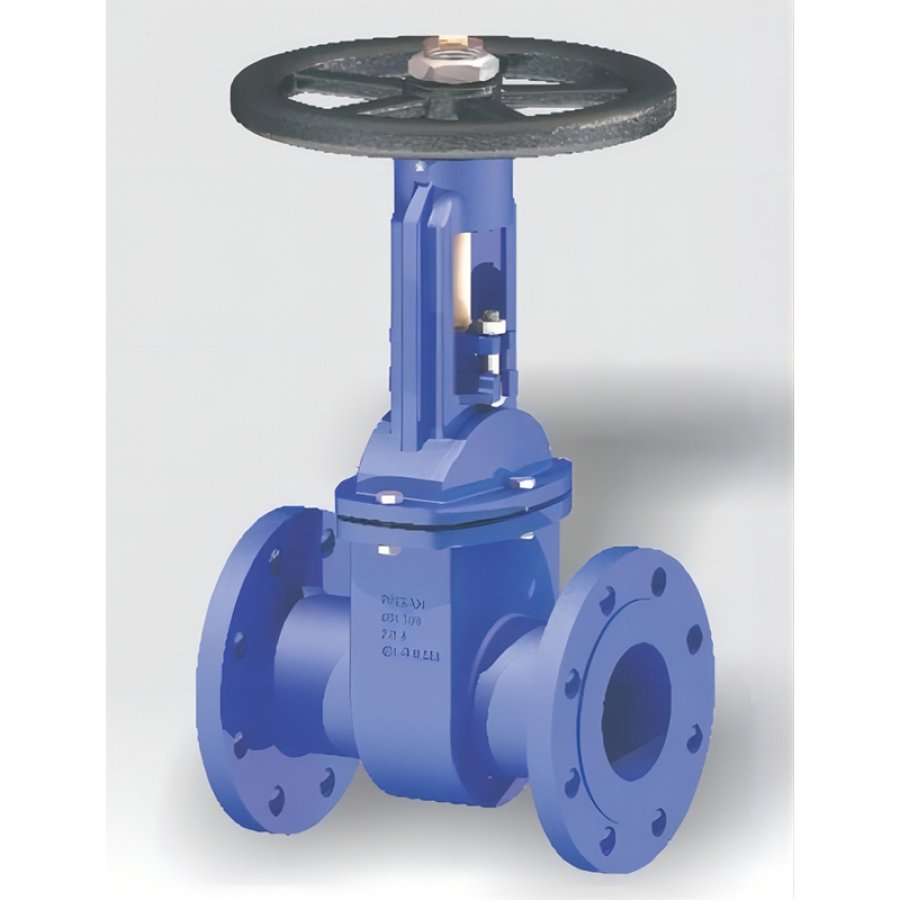

GATE VALVE-OS&Y-RISING STEM-NON RISING HANDWHEEL LONG TYPE-F5-PN25 | PN25/PN40 | 40-1000 | fresh water,lubricating oll |
Material of Main Parts:
Item | Parts Name | Material |
1 | Body | Cast steel |
2 | Stem/seat | Bronze or Stainless steel |
3 | Design | DIN 3352 T3 |
4 | Face to Face | EN558 Series 15(DIN3202F5) |
5 | Flange Dimension | DIN Flanges acc.to EN 1092/B(DIN 2501) |
6 | Temperature | -10℃~+120℃ |
DIMENSIONS：
DN（mm） | OD PN25 | OD PN40 | L（mm） | H（mm） | OR（mm） | Weight （kg） |
40 | 150 | 150 | 240 | 410 | 225 | 19 |
50 | 165 | 165 | 205 | 470 | 225 | 20 |
65 | 185 | 185 | 270 | 560 | 280 | 28 |
80 | 200 | 200 | 280 | 580 | 280 | 34 |
100 | 235 | 235 | 300 | 690 | 320 | 42 |
125 | 270 | 270 | 325 | 790 | 360 | 58 |
150 | 300 | 300 | 350 | 895 | 360 | 73 |
200 | 360 | 375 | 400 | 1030 | 400 | 120 |
250 | 425 | 450 | 450 | 1220 | 500 | 180 |
300 | 485 | 515 | 500 | 1405 | 500 | 260 |
350 | 555 | 580 | 550 | 1595 | 500 | 350 |
400 | 620 | 660 | 600 | 1810 | 640 | 460 |
450 | 670 | 685 | 650 | 2000 | 640 | 625 |
500 | 730 | 755 | 700 | 2195 | 720 | 845 |
600 | 845 | 890 | 800 | 2575 | 720 | 1170 |
700 | 960 | 995 | 900 | 3000 | 720 | 1480 |
800 | 1085 | 1140 | 1000 | 3345 | 800 | 2500 |
900 | 1185 | 1250 | 1100 | 3740 | 800 | 3700 |
1000 | 1320 | 1360 | 1200 | 4075 | 800 | 4500 |
