Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |

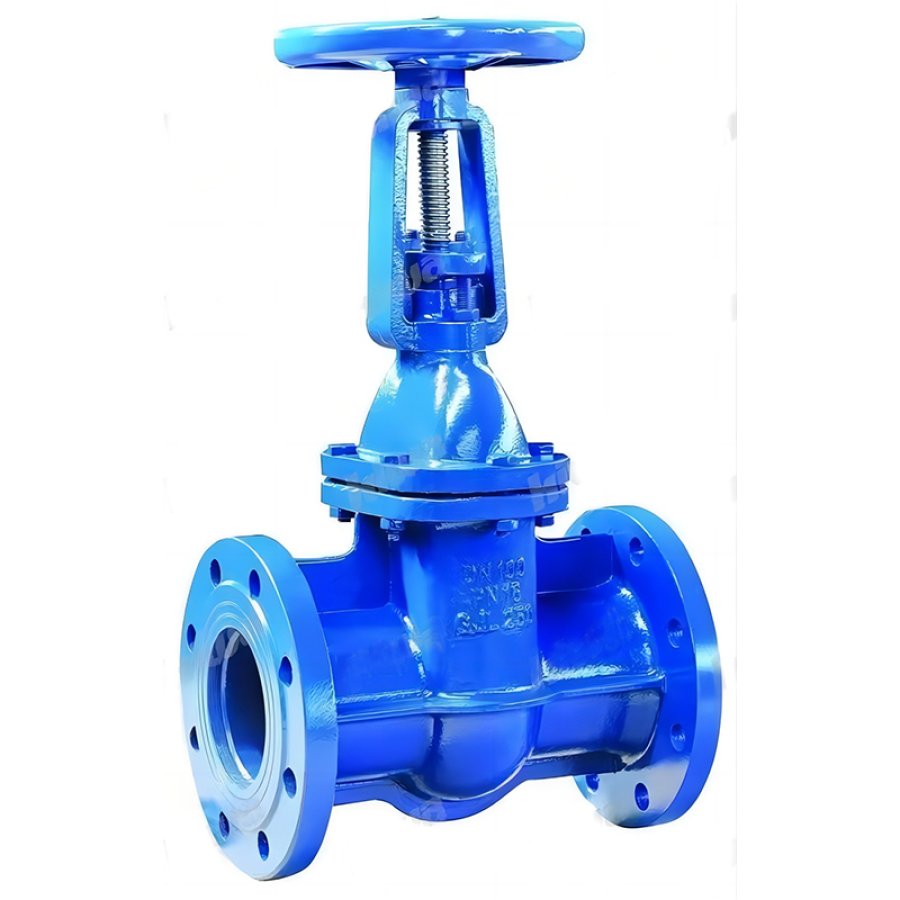

GATE VALVE-OS&Y-RISING STEM-NON RISING HANDWHEEL LONG TYPE-F5 | PN10/PN16 | 40-1500 | fresh water,lubricating oll |
Material of Main Parts:
Item | Parts Name | Material |
1 | Body | Cast iron /Ductile iron |
2 | Stem/seat | Bronze or Stainless steel |
3 | Design | EN 1171 (DIN 3352 T3) |
4 | Face to Face | EN558 Series 15(DIN3202F5) |
5 | Flange Dimension | DIN Flanges acc.to EN 1092-2/B(DIN 2501) |
6 | Temperature | -10℃~+120℃ |
DIMENSIONS：
DN（mm） | OD PN10 | OD PN16 | L（mm） | H（mm） | OR（mm） | Weight （kg） |
40 | 150 | 150 | 240 | 410 | 225 | 19 |
50 | 165 | 165 | 205 | 470 | 225 | 20 |
65 | 185 | 185 | 270 | 560 | 280 | 28 |
80 | 200 | 200 | 280 | 580 | 280 | 34 |
100 | 220 | 220 | 300 | 690 | 320 | 42 |
125 | 250 | 250 | 325 | 790 | 360 | 58 |
150 | 285 | 285 | 350 | 895 | 360 | 73 |
200 | 340 | 340 | 400 | 1030 | 400 | 120 |
250 | 395 | 405 | 450 | 1220 | 500 | 180 |
300 | 445 | 460 | 500 | 1405 | 500 | 260 |
350 | 505 | 520 | 550 | 1595 | 500 | 350 |
400 | 565 | 580 | 600 | 1810 | 640 | 460 |
450 | 615 | 640 | 650 | 2000 | 640 | 625 |
500 | 670 | 715 | 700 | 2195 | 720 | 845 |
600 | 780 | 840 | 800 | 2575 | 720 | 1170 |
700 | 895 | 910 | 900 | 3000 | 720 | 1480 |
800 | 1015 | 1025 | 1000 | 3345 | 800 | 2500 |
900 | 1115 | 1125 | 1100 | 3740 | 800 | 3700 |
1000 | 1230 | 1255 | 1200 | 4075 | 800 | 4500 |
1500 | 1785 | 1820 | 1700 | 6200 | 1200 | 8700 |
