Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |

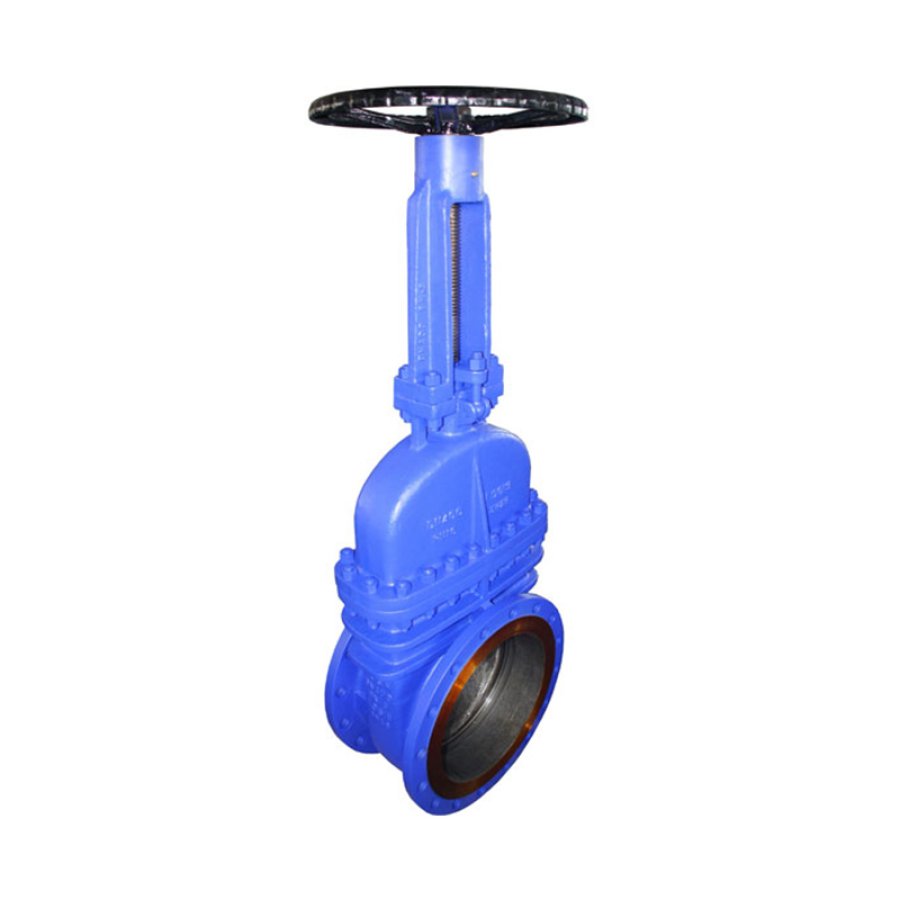

GATE VALVE-OS&Y-RISING STEM-RISING HANDWHEEL SHORT TYPE-F4 | PN2.5-PN10 | 40-700 | fresh water,lubricating oll |
Material of Main Parts:
Item | Parts Name | Material |
1 | Body | Cast iron /Ductile iron |
2 | Stem/seat | Bronze or Stainless steel |
3 | Design | EN1171（DIN3352 T3） |
4 | Face to Face | EN558 Series 14(DIN3202F4) |
5 | Flange Dimension | DIN Flanges acc.to EN 1092-2/B(DIN 2501) |
6 | Temperature | -10℃~+120℃ |
DIMENSIONS：
DN（mm） | OD PN¹0 | OD PN¹6 | L（mm） | H（mm） | OR（mm） | Weight （kg） |
40 | 150 | 150 | 140 | 410 | 180 | 17 |
50 | 165 | 165 | 150 | 470 | 180 | 18 |
65 | 185 | 185 | 170 | 560 | 225 | 26 |
80 | 200 | 200 | 180 | 580 | 225 | 30 |
100 | 220 | 220 | 190 | 690 | 280 | 38 |
125 | 250 | 250 | 200 | 790 | 320 | 52 |
150 | 285 | 285 | 210 | 895 | 320 | 65 |
175 | 315 | 315 | 220 | 950 | 320 | 85 |
200 | 340 | 340 | 230 | 1030 | 360 | 108 |
250 | 395 | 405 | 250 | 1220 | 400 | 155 |
300 | 445 | 460 | 270 | 1405 | 500 | 210 |
350 | 505 | 520 | 290 | 1595 | 500 | 250 |
400 | 565 | 580 | 310 | 1810 | 640 | 340 |
450 | 615 | 640 | 330 | 2000 | 640 | 400 |
500 | 670 | 715 | 350 | 2195 | 720 | 520 |
600 | 780 | 840 | 390 | 2575 | 720 | 630 |
700 | 895 | 910 | 430 | 3000 | 800 | 820 |
