Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |

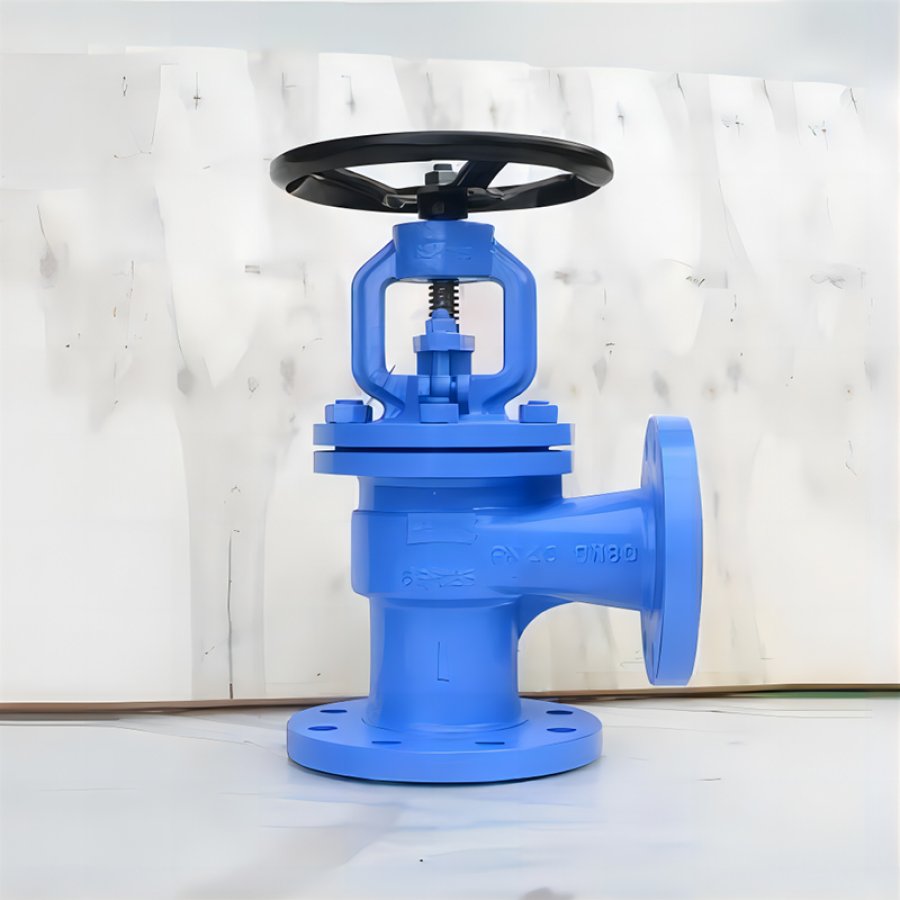

GLOBE VALVE-ANGLE-BONNET DIN LENGTH-STOP TYPE | PN4-PN16(as mentioned n DIN86251) | 15-600 | water,ol andsteam. |
Material of Main Parts:
Item | Parts Name | Material |
1 | Body | Cast iron /Ductile iron |
2 | Stem/seat | Bronze or Stainless steel |
3 | Design | DIN86251 STOP Type (DIN 3356） |
4 | Face to Face | EN558 Series 8(DIN3202F2) |
5 | Flange Dimension | DIN Flanges acc.to EN 1092-2/B(DIN 2501) |
6 | Temperature | -10℃~+180℃(as mentioned n DIN86251) |
DIMENSIONS：
DN（mm） | OD PN10 | OD PN16 | L1（mm） | H（mm） | OR（mm） | Weight （kg） |
15 | 95 | 95 | 90 | 160 | 120 | 3.8 |
20 | 105 | 105 | 95 | 155 | 120 | 4.0 |
25 | 115 | 115 | 100 | 165 | 140 | 5.0 |
32 | 140 | 140 | 105 | 170 | 140 | 7.0 |
40 | 150 | 150 | 115 | 215 | 160 | 10 |
50 | 165 | 165 | 125 | 215 | 160 | 12 |
65 | 185 | 185 | 145 | 225 | 180 | 17 |
80 | 200 | 200 | 155 | 265 | 200 | 23 |
100 | 220 | 220 | 175 | 305 | 225 | 33 |
125 | 250 | 250 | 200 | 310 | 250 | 50 |
150 | 285 | 285 | 225 | 355 | 300 | 70 |
175 | 315 | 315 | 250 | 420 | 400 | 90 |
200 | 340 | 340 | 275 | 420 | 400 | 110 |
250 | 395 | 405 | 325 | 485 | 520 | 155 |
300 | 445 | 460 | 375 | 535 | 520 | 215 |
350 | 505 | 520 | 425 | 610 | 640 | 275 |
400 | 565 | 580 | 475 | 660 | 640 | 360 |
450 | 615 | 640 | 500 | 700 | 640 | 395 |
500 | 670 | 715 | 525 | 765 | 640 | 485 |
600 | 780 | 840 | 450+550 | 810 | 640 | 650 |
