GB/T 3036-DJ Type Wafer Hydraulic Butterfly Valve - Advanced Fluid Control Solution

Product Details

GB/T 3036-DJ Basic parameters of marine central butterfly valve：

Type

Nominal pressure PN/MPa

Maximum working pressure/MPa

Valve body material code

Nominal diameter DN/mm

Note 1: When the valve seat ring material is NBR, the butterfly valve is suitable for seawater, fresh water, air, crude oil, heavy oil and other media with t ≤70℃.

Note 2: When the valve seat ring material is FPM, the butterfly valve is suitable for seawater, fresh water, air, crude oil, heavy oil lubricating oil, refined oil and other media with t<170℃.

A
B

10

1.0

G、T、QT、W

50～200

B

50～500

C

D

E

AS、FAS

6、10

0.6、1.0

50～200

BS、FBS、FFBS

50～700

CS、FCS

50～1000

FFCS

G、QT、W

50～800

DS、FDS

G、T、QT、W

FFDS

G、QT、W

ES、FES

G、T、QT、W

FFES

G、QT、W

AJ、FAJ

5K

0.5

G、T、QT、W

50～200

10K

1.0

BJ、FBJ

5K

0.5

50～700

10K

1.0

FFBJ

5K

0.5

G、QT、W

125～700

10K

1.0

CJ、FCJ

5K

0.5

G、T、QT、W

50～800

10K

1.0

FFCJ

5K

0.5

G、QT、W

125～800

10K

1.0

DJ、FDJ

5K

0.5

G、T、QT、W

50～800

10K

1.0

FFDJ

5K

0.5

G、QT、W

125～800

10K

1.0

EJ、FEJ

5K

0.5

G、T、QT、W

50～800

10K

1.0

FFEJ

5K

0.5

G、QT、W

125～800

10K

1.0

主要零件材料：

零件名称

材料

代号

名称

牌号

标准编号

阀体

G

铸钢

ZG230-450C

GB/T 4299-2013

T

灰铸铁

HT250

GB/T 9439-2010

QT

球墨铸铁

QT400-15

GB/T 1348-2009

W

铸铜合金

ZCuSn10Zn2

GB/T 1176-2013

阀盘

-

铸不锈钢

ZG07Cr19Ni9

GB/T 2100-2002

-

铸不锈钢

CF8M

GB/T 12230-2005

-

铸不锈钢

CF3M

-

铸铜合金

ZCuAI9Mn2

GB/T 1176-2013

阀杆

-

不锈钢

12Cr13

GB/T 1220-2007

阀座圈

N

丁腈橡胶

XA8433

GB/T 2811-1996

F

氟橡胶

XD8423

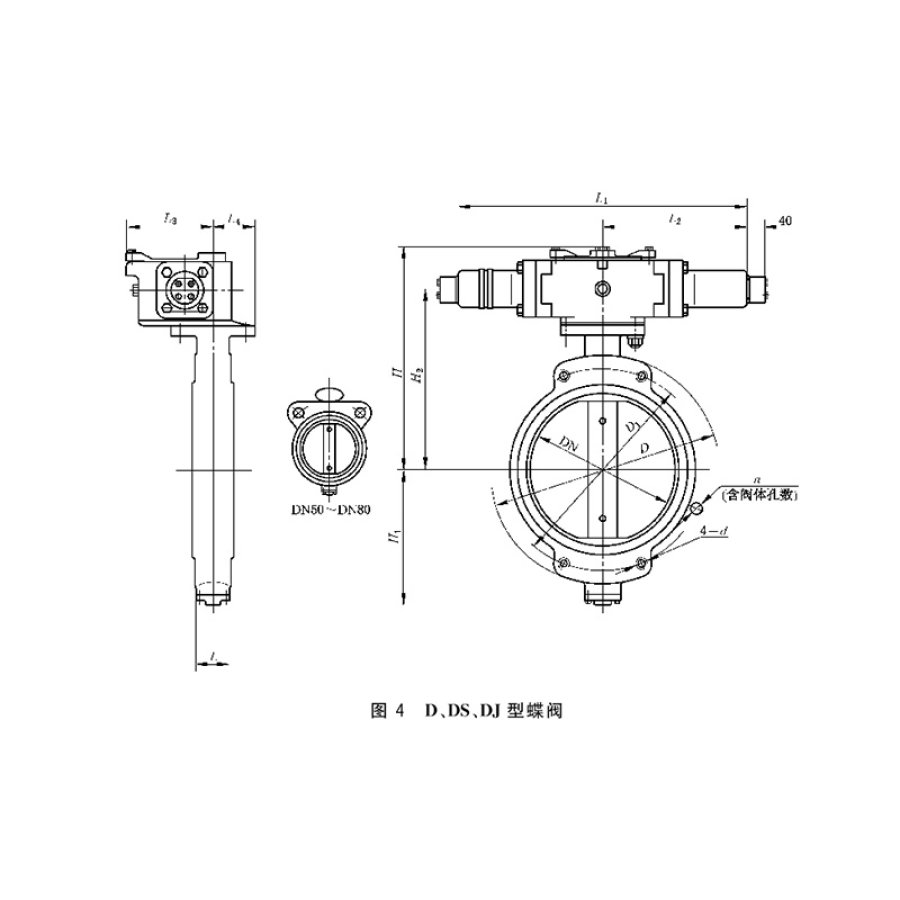

DJ型蝶阀的基本尺寸：

公称压力PN/	公称通径DN/ mm	外形尺寸								法兰尺寸				重量kg

		≈H	≈H1	H2	L1	L2	L3	L4	L	D	D1	n/个	d	T、QT	G	W
5K	50	225	69	159	390	195	93	50	40	130	105	4	15	19.2	21.2	23.3
	65	235	79	169						155	130			20.1	22.3	25.4
	80	245	89	179					60	180	145		19	20.5	22.5	25.5
	100	260	135	194						200	165	8	M16	22.2	24.1	27.2
	125	280	152	214						235	200			23.4	26.2	29.1
	150	330	172	255	456	228	108	60	70	265	230			36.6	40.5	45.7
	200	355	197	280					80	320	280		M20	40.1	44.5	50.2
	250	415	233	332	576	288	136	73	90	385	345	12		62.7	68.7	77.2
	300	440	258	357						430	390			68.0	75.5	84.5
	350	481	284	384	660	330	162	78	100	480	435		M22	98.2	107.0	121.0
	400	541	314	436	700	350	173	88	110	540	495	16		130.0	143.0	161.0
	450	586	344	472	768	384	192	93	130	605	555			152.0	167.0	188.0
	500	637	382	515	816	408	202	98	140	655	605	20		215.0	236.0	265.0
	600	739	444	617	816	408	202	98	160	770	715		M24	273.0	300.0	338.0
	700	810	501	675	984	492	235	135	180	875	820	24		407.0	447.0	503.0
	800	905	563	755	1104	552	269	155	200	995	930		M30	507.0	557.0	626.0
10K	50	225	69	159	390	195	93	50	40	155	120	4	19	20.2	22.2	24.0
	65	235	79	169						175	140			21.1	23.1	26.1
	80	245	89	179					60	185	150	8		21.7	23.5	26.5
	100	260	135	194						210	175		M16	23.2	25.1	28.7
	125	280	152	214						250	210		M20	24.2	27.5	30.2
	150	330	172	255	456	228	108	60	70	280	240			38.5	42.3	47.1
	200	355	197	280					80	330	290	12		42.0	46.2	23.5
	250	415	233	332	576	288	136	73	90	400	355		M22	64.5	71.7	80.2
	300	440	258	357						445	400	16		71.2	78.5	88.0
	350	481	284	384	660	330	162	78	100	490	445			102.0	112.0	126.0
	400	541	314	436	700	350	173	88	110	560	510		M24	135.0	149.0	167.0
	450	586	344	472	768	384	192	93	130	620	565	20		158.0	174.0	196.0
	500	637	382	515	816	408	202	98	140	675	620			224.0	246.0	276.0
	600	739	444	617	816	408	202	98	160	795	730	24	M30	285.0	313.0	352.0
	700	810	501	675	984	492	235	135	180	905	840			424.0	466.0	524.0
	800	905	563	755	1104	552	269	155	200	1020	950	28		528.0	580.0	652.0
