JIS F7121 Marine Cast Iron Can Sea Water Strainer

Inquire Now
Add To Cart

Product Details

Marine Can Water Filter JIS 7121 LA Type 5K (DN125-DN400):

Marine Can Water Filter JIS F7121 also can be called as marine sea water filter or marine basket water filer.

Design Standard: JIS F7121-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 0.3Mpa

Flange size as per JIS B2220 - 5K

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Strainer: Stainless Steel (SUS304)

Gasket: non-asbestos

Yoke: FCD450

Air Vent Plug: Brass

Drain Plug: Brass

Main Size List(mm):

DN	d	L	L1	D	C	h	t	H
125	125	400	200	235	200	19	20	485
150	150	460	230	265	230	19	22	575
200	200	550	275	320	280	23	24	665
250	250	680	340	385	345	23	26	825
300	300	760	380	430	390	23	28	920
350	350	820	410	480	435	25	30	1030
400	400	880	440	540	495	25	30	1135

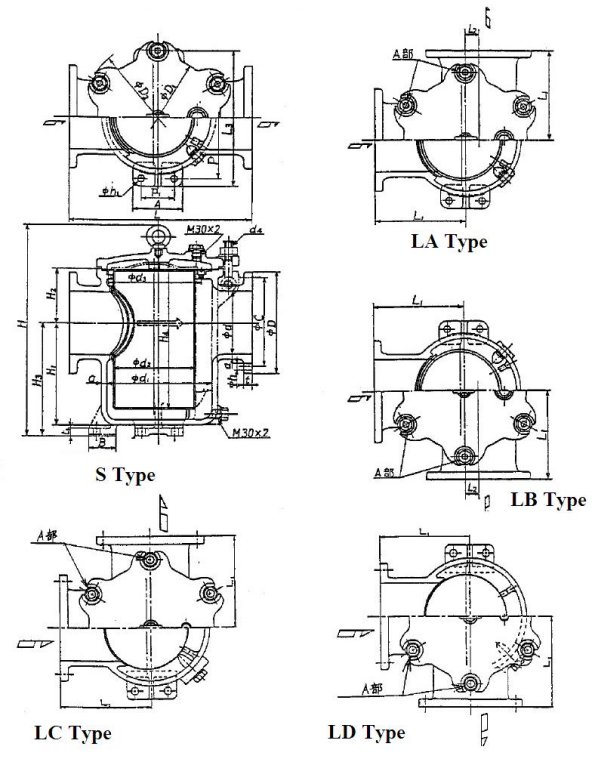

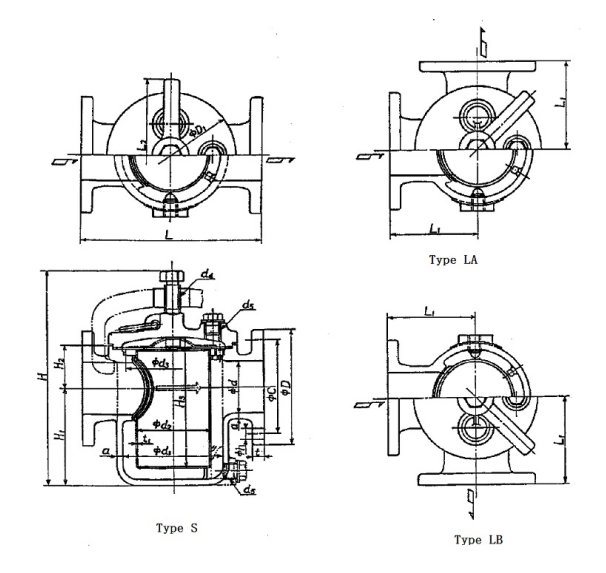

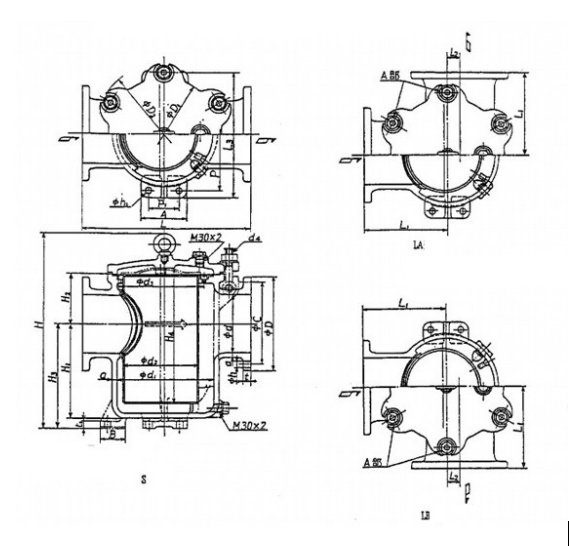

Marine Can Water Filter JIS 7121 S Type 5K (DN25-DN100) Drawing

China Marine Can Water Filter JIS 7121 S Type 5K (DN25-DN100):

Marine Can Water Filter JIS F7121 also can be called as marine sea water filter or marine basket water filer.

Design Standard: JIS F7121-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 0.3Mpa

Flange size as per JIS B2220 - 5K

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Strainer: Stainless Steel (SUS304)

Gasket: non-asbestos

Yoke: FCD450

Air Vent Plug: Brass

Drain Plug: Brass

Main Size List(mm):

DN	d	L	L1	D	C	h	t	H
25	25	170	85	95	75	12	14	191
32	32	190	95	115	90	15	16	218
40	40	190	95	120	95	15	16	218
50	50	200	100	130	105	15	16	239
65	65	250	125	155	130	15	18	306
80	80	270	135	180	145	19	18	341
100	100	320	160	200	165	19	20	401

Marine Sea Water Strainer JIS F7121 S Type (DN125-DN400):

Marine Sea Water Strainer JIS F7121 also can be called as marine can water filter(strainer) or marine basket water filer(strainer).

Design Standard: JIS F7121-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 0.3Mpa

Flange size as per JIS B2220 - 5K/10K

Type: S, LA, LB

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Strainer: Stainless Steel (SUS304)

Gasket: non-asbestos

Yoke: FCD450

Air Vent Plug: Brass

Drain Plug: Brass

Main Size List(mm):

DN	d	L	L1	D	C	h	t	H
125	125	400	200	235	200	19	20	485
150	150	460	230	265	230	19	22	575
200	200	550	275	320	280	23	24	665
250	250	680	340	385	345	23	26	825
300	300	760	380	430	390	23	28	920
350	350	820	410	480	435	25	30	1030
400	400	880	440	540	495	25	30	1135
