Design Standard: JIS F7209-1996
Test Standard: JIS F7200-1996
Test Pressure: Body-0.74Mpa
Flange size as per JIS B2220-5K or 10K

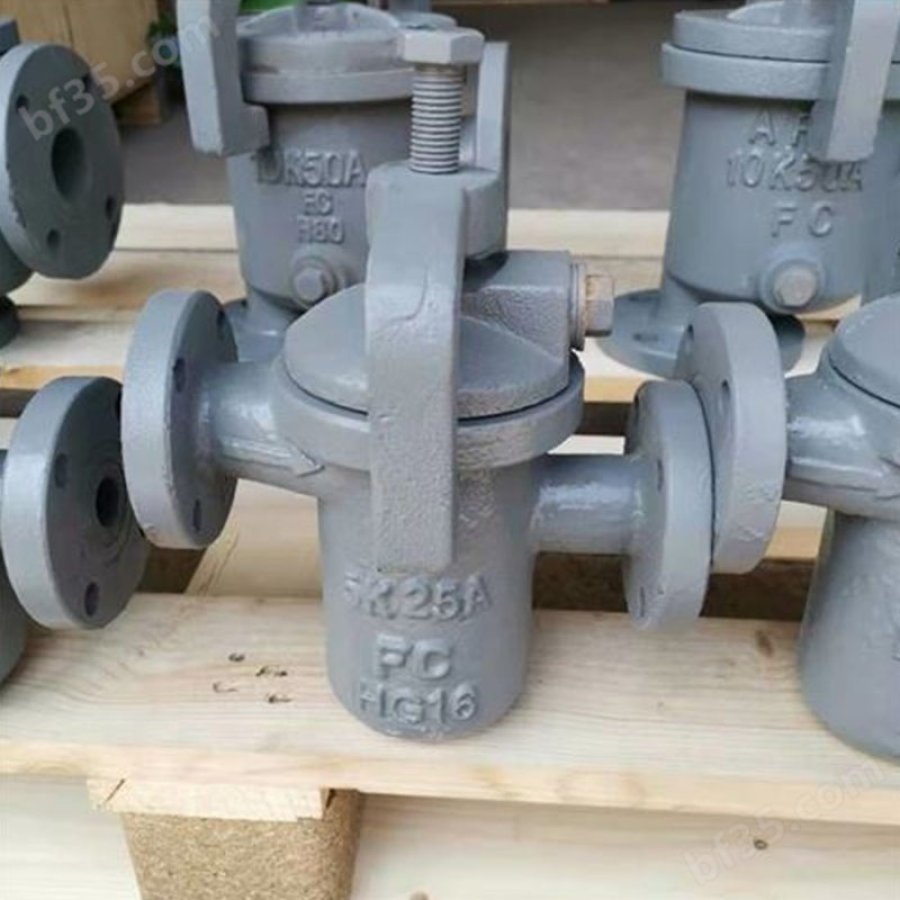

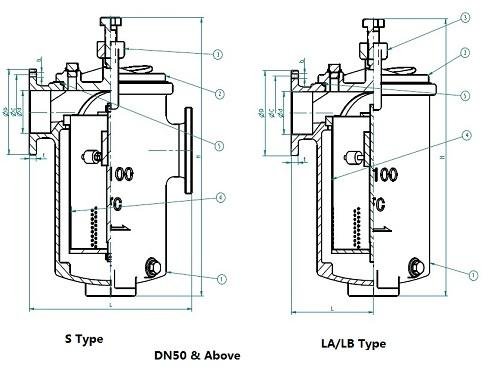

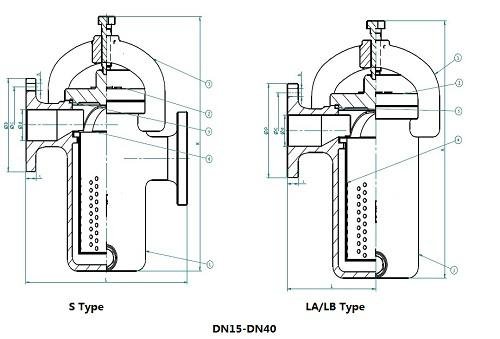

*JIS F7209 has three types, S type, LA type & LB type.
DN size can be from DN15 to DN400
Main Material:
Body:Cast Iron (FC200)
Bonnet:Cast Iron (FC200)
Yoke:Nodular Cast Iron (FCD450)
Strainer:Carbon Steel (SS400) or Stainless Steel (SUS304 or SUS316)
Plug:Brass
O-Ring: NBR
Main Size List(mm):
DN | d | L | L (LA/LB) | D | C | No of Bolt Hole | h | t | H |
5K20 | 25 | 190 | 85 | 65 | 4 | 12 | 14 | 240 | |
5K25 | 25 | 190 | 95 | 95 | 75 | 4 | 12 | 14 | 240 |
10K25 | 25 | 190 | 95 | 125 | 90 | 4 | 19 | 16 | 240 |
5K32 | 32 | 260 | 130 | 115 | 90 | 4 | 15 | 18 | 328 |
10K32 | 32 | 260 | 130 | 135 | 100 | 4 | 19 | 20 | 328 |
5K40 | 40 | 260 | 130 | 120 | 95 | 4 | 15 | 16 | 328 |
10K40 | 40 | 260 | 130 | 140 | 105 | 4 | 19 | 20 | 328 |
5K50 | 50 | 280 | 140 | 130 | 105 | 4 | 15 | 16 | 405 |
10K50 | 50 | 280 | 140 | 155 | 120 | 4 | 19 | 20 | 405 |
5K65 | 65 | 340 | 170 | 155 | 130 | 4 | 15 | 18 | 495 |
10K65 | 65 | 340 | 170 | 175 | 140 | 4 | 19 | 22 | 495 |
5K80 | 80 | 370 | 185 | 180 | 145 | 4 | 19 | 18 | 525 |
10K80 | 80 | 370 | 185 | 185 | 150 | 8 | 19 | 22 | 525 |
5K100 | 100 | 420 | 210 | 200 | 165 | 8 | 19 | 20 | 651 |
10K100 | 100 | 420 | 210 | 210 | 175 | 8 | 19 | 24 | 651 |
