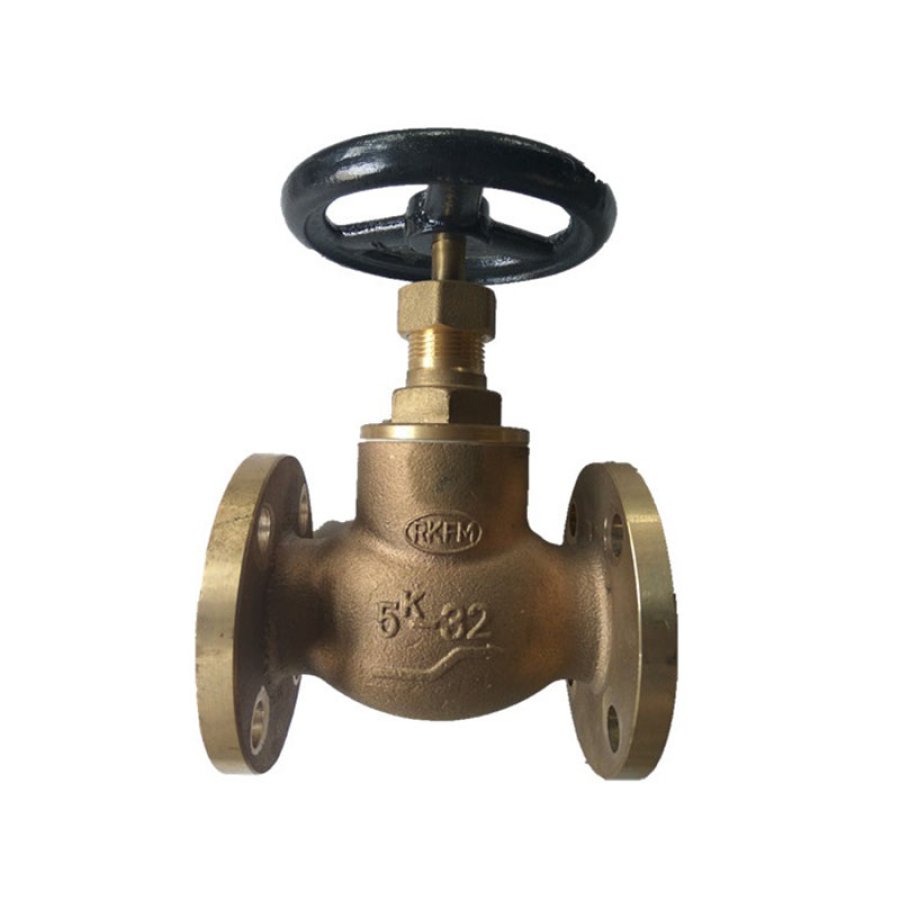

JIS F7301 5K Marine Cast Bronze Globe Valve
Product Details
Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |
JIS F7301 | 5K | 15~65 | Sea Water.Fresh Water |
Manufactured in accordance to JIS F7400 • Flanges as per JIS B2220 – 5K • Screwed bonnet for sizes DN 15 – DN 40 • Bolted bonnet for sizes DN 50 – DN 65
TESTS:
Test Liquid | Water at Room Temp |
Body Test | 12 Kg |
Seat Test | 8 Kg |
Material of Main Parts:
Item | Parts Name | Material | Code |
1 | Body | Cast Bronze | BC6 |
2 | Disc | Bronze | BC6 |
3 | Stem | Brass | H62 |
4 | Bonnet | Cast Bronze | BC6 |
5 | Handwheel | Cast Iron | FC200 |
DIMENSIONS:
IMPA CODE | DN | L | D | C | No. | h | t | H | D2 |
750121 | 5K15 | 100 | 80 | 60 | 4 | 12 | 9 | 130 | 80 |
750122 | 5K20 | 110 | 85 | 65 | 4 | 12 | 10 | 140 | 100 |
750123 | 5K25 | 120 | 95 | 75 | 4 | 12 | 10 | 160 | 125 |
750124 | 5K32 | 140 | 115 | 90 | 4 | 15 | 12 | 170 | 125 |
750125 | 5K40 | 160 | 120 | 95 | 4 | 15 | 12 | 190 | 140 |
750126 | 5K50 | 210 | 130 | 105 | 4 | 15 | 14 | 235 | 140 |
750127 | 5K65 | 250 | 155 | 130 | 4 | 15 | 14 | 260 | 160 |
