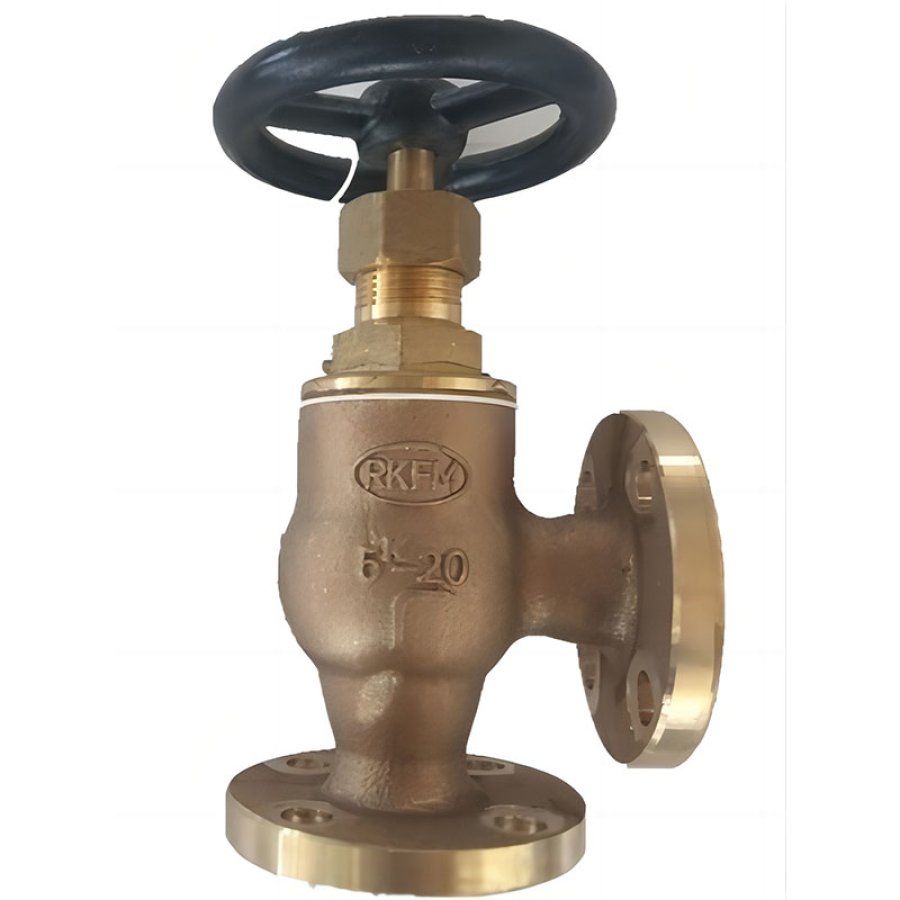

JIS F7302 5K Marine Cast Bronze Angle Valve
Product Details
Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |
JIS F7302 | 5K | 15~65 | Sea Water.Fresh Water |
Manufactured in accordance to JIS F7400 • Flanges as per JIS B2220 – 5K • Screwed bonnet for sizes DN 15 – DN 40 • Bolted bonnet for sizes DN 50 – DN 65
TESTS
Test Liquid | Water at Room Temp |
Body Test | 12 Kg |
Seat Test | 8 Kg |
Material of Main Parts:
Item | Parts Name | Material | Code |
1 | Body | Cast Bronze | BC6 |
2 | Disc | Bronze | BC6 |
3 | Stem | Brass | H62 |
4 | Bonnet | Cast Bronze | BC6 |
5 | Handwheel | Cast Iron | FC200 |
DIMENSIONS
Size | IMPA CODE | L | D | C | No. | h | t | H | D2 |
5K15 | 750131 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 80 |
5K20 | 750132 | 60 | 85 | 65 | 4 | 12 | 10 | 130 | 100 |
5K25 | 750133 | 65 | 95 | 75 | 4 | 12 | 10 | 145 | 125 |
5K32 | 750134 | 80 | 115 | 90 | 4 | 15 | 12 | 150 | 125 |
5K40 | 750135 | 85 | 120 | 95 | 4 | 15 | 12 | 165 | 140 |
5K50 | 750136 | 100 | 130 | 105 | 4 | 15 | 14 | 200 | 140 |
5K65 | 750137 | 115 | 155 | 130 | 4 | 15 | 14 | 220 | 160 |
