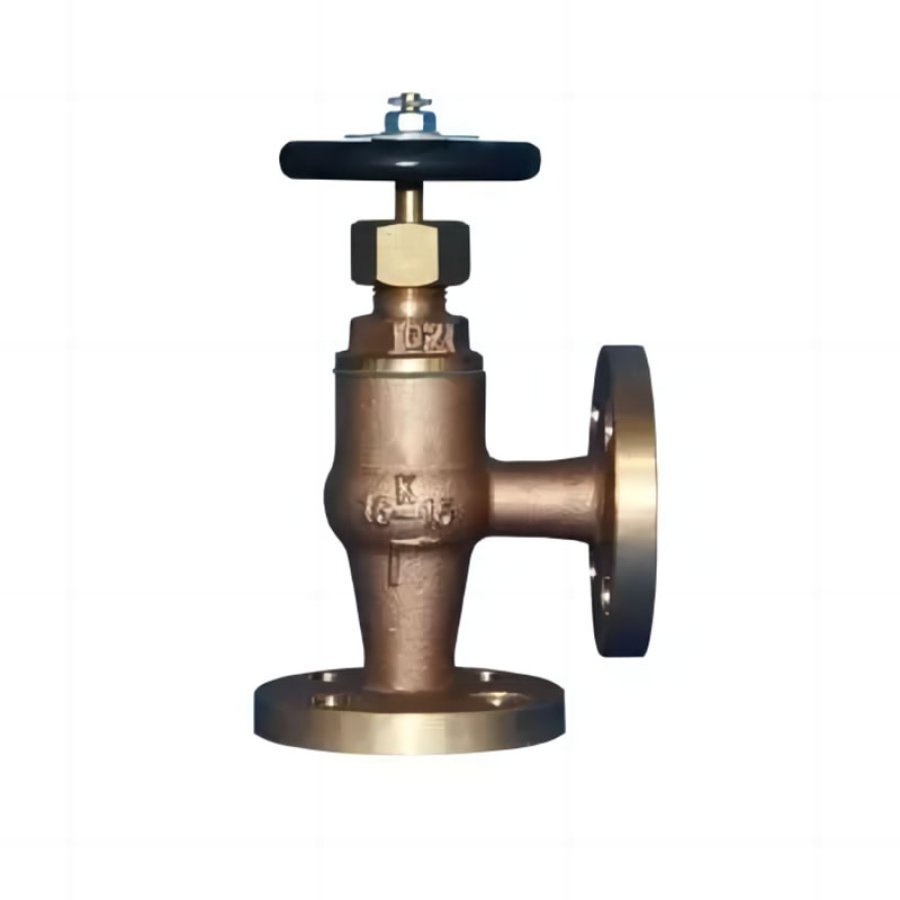

JIS F7304 16K Marine Cast Bronze Angle Valve
Product Details
Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |
JIS F7304 | 16K | 15~40 | Sea Water.Fresh Water |
Manufactured in accordance to JIS F7400 • Flanges as per JIS B2220 – 16K
TESTS
Test Liquid | Water at Room Temp |
Body Test | 38 Kg |
Seat Test | 23 Kg |
Material of Main Parts:
Item | Parts Name | Material | Code |
1 | Body | Cast Bronze | BC6 |
2 | Disc | Bronze | BC6 |
3 | Stem | Brass | H62 |
4 | Bonnet | Cast Bronze | BC6 |
5 | Handwheel | Cast Iron | FC200 |
DIMENSIONS
Size | IMPA CODE | L | D | C | No. | h | t | H | D2 |
16K15 | 750151 | 70 | 95 | 70 | 4 | 15 | 12 | 120 | 80 |
16K20 | 750152 | 75 | 100 | 75 | 4 | 15 | 14 | 130 | 100 |
16K25 | 750153 | 85 | 125 | 90 | 4 | 19 | 14 | 145 | 125 |
16K32 | 750154 | 95 | 135 | 100 | 4 | 19 | 16 | 150 | 125 |
16K40 | 750155 | 100 | 140 | 105 | 4 | 19 | 16 | 165 | 140 |
