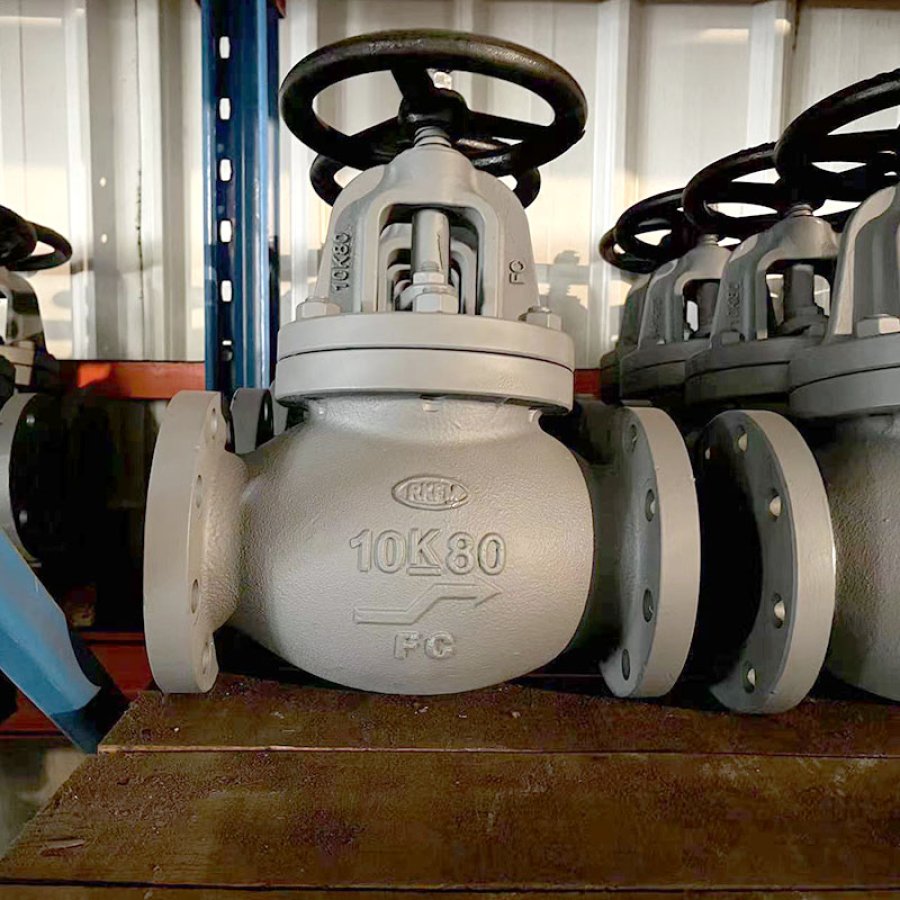

Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |
JIS F7307 | 10K | 50~300 | Steam,Air&Gas,Oil&Flow Water |
Material of Main Parts:
Item | Parts Name | Material | Code |
1 | Body | Cast Iron | FC200 |
2 | Disc | Bronze/Stainless Steel | BC6/SS304/SS420 |
3 | Stem | Brass/Stainless Steel | H62/SS304/SS410 |
4 | Bonnet | Cast Iron | FC200 |
5 | Handwheel | Cast Iron | FC200 |
TECHNICAL DATA
Manufactured in accordance to JIS F7400 • Flanges as per JIS B2220 – 10K
TESTS
Test Liquid | Water at Room Temp | |
Body Test | DN50 – DN200 | 2.06 Kgf/cm’ (21) |
DN250 – DN300 | 1.47 Kgf/cm’ (15) | |
Seat Test | DN50 – DN200 | 1.51 Kgf/cm’ (15.4) |
DN250 – DN300 | 1.08 Kgf/cm’ (11) | |
DIMENSIONS
IMPA CODE | DN | L | D | C | No. | h | t | H | D2 | Kg |
75 02 31 | 50 | 220 | 155 | 120 | 4 | 19 | 20 | 285 | 160 | 19.9 |
75 02 32 | 65 | 270 | 175 | 140 | 4 | 19 | 22 | 310 | 200 | 28.7 |
75 02 33 | 80 | 300 | 185 | 150 | 8 | 19 | 22 | 320 | 200 | 32.4 |
75 02 34 | 100 | 350 | 210 | 175 | 8 | 19 | 24 | 370 | 250 | 48.7 |
75 02 35 | 125 | 420 | 250 | 210 | 8 | 23 | 24 | 420 | 280 | 73.1 |
75 02 36 | 150 | 490 | 280 | 240 | 8 | 23 | 26 | 470 | 315 | 104 |
75 02 37 | 200 | 570 | 330 | 290 | 12 | 23 | 26 | 555 | 355 | 162 |
75 02 38 | 250 | 740 | 400 | 355 | 12 | 25 | 30 | 680 | 450 | 304 |
75 02 39 | 300 | 840 | 445 | 400 | 16 | 25 | 32 | 770 | 500 | 458 |
