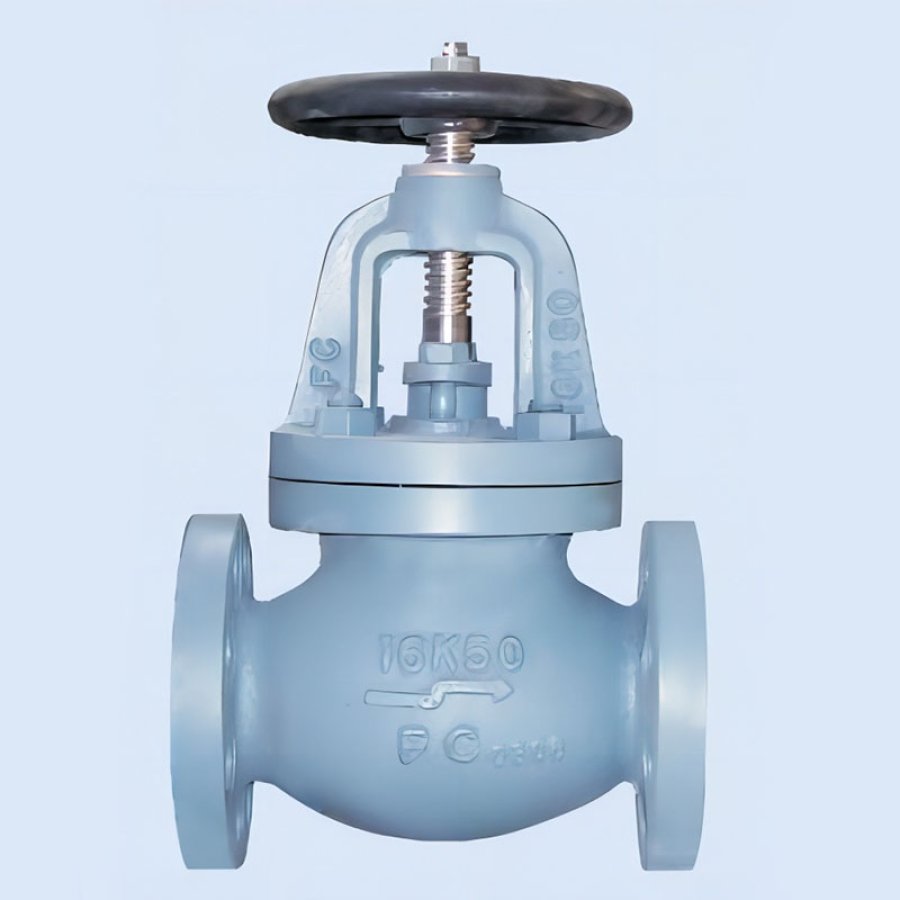

JIS F7309 16K Marine Cast Iron Globe Valve
Product Details

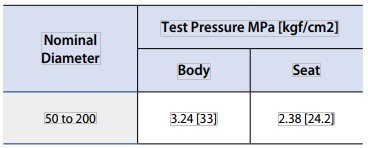

Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |
JIS F7309 | 16K | 50~200 | Steam,Air&Gas,Oil&Flow Water |
Material of Main Parts:
Item | Parts Name | Material | Code |
1 | Body | Cast Iron | FC200 |
2 | Disc | Bronze/Stainless Steel | BC6/SS304/SS420 |
3 | Stem | Brass/Stainless Steel | H62/SS304/SS410 |
4 | Bonnet | Cast Iron | FC200 |
5 | Handwheel | Cast Iron | FC200 |
Main Data：
Size | IMPA CODE | L | D | C | No. | h | t | H | D2 |
16K50 | 750261 | 220 | 155 | 120 | 8 | 19 | 20 | 285 | 160 |
16K65 | 750262 | 270 | 175 | 140 | 8 | 19 | 22 | 310 | 200 |
16K80 | 750263 | 300 | 200 | 160 | 8 | 23 | 24 | 340 | 224 |
16K100 | 750264 | 350 | 225 | 185 | 8 | 23 | 26 | 385 | 250 |
16K125 | 750265 | 430 | 270 | 225 | 8 | 25 | 26 | 455 | 315 |
16K150 | 750266 | 500 | 305 | 260 | 12 | 25 | 28 | 510 | 355 |
16K200 | 750267 | 570 | 350 | 305 | 12 | 25 | 30 | 630 | 450 |
