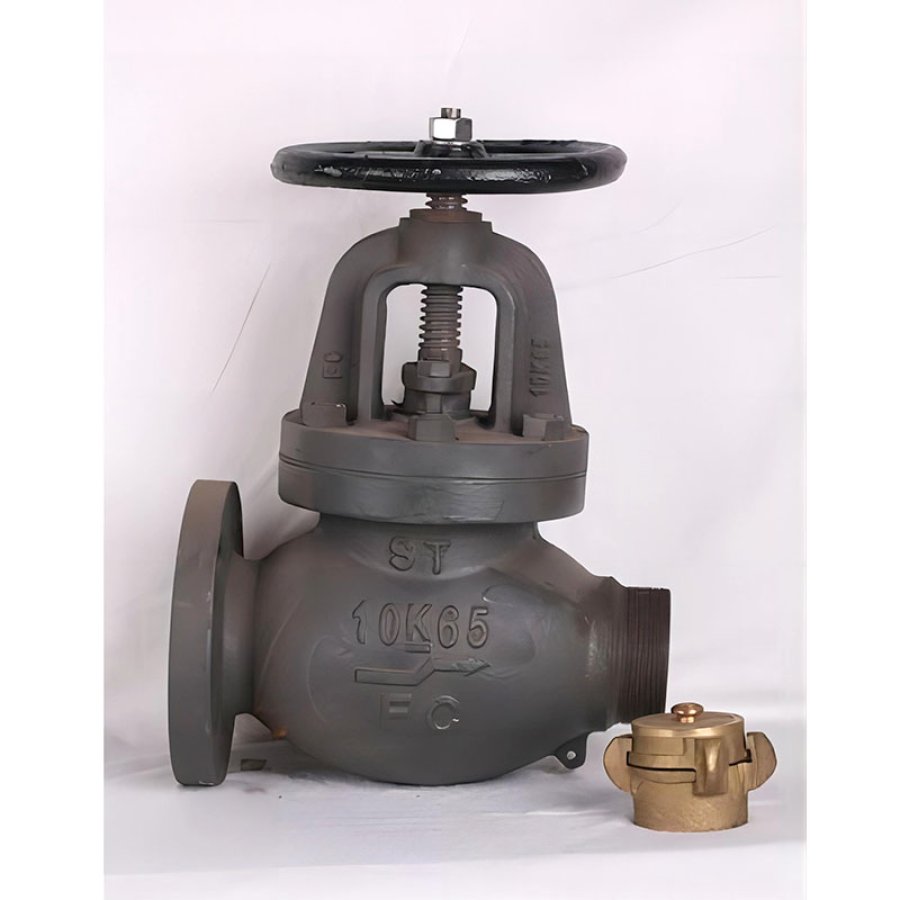

JIS F7333A 5K10K Marine Cast Iron globe Hose Valve
Product Details
Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |
JIS F7333A | 5K/10K | 50~65 | Sea Water.Fresh Water |
Material of Main Parts:
Item | Parts Name | Material | Code |
1 | Body | Cast Iron | FC200 |
2 | Disc | Stainless Steel | SS420 |
3 | Stem | Stainless Steel | SS410 |
4 | Bonnet | Cast Iron | FC200 |
5 | Handwheel | Cast Iron | FC200 |
Main Data：
Type | Size | IMPA CODE | L | D | H | Do | Weight kgs |
5K50 | 751731 | 165 | 155 | 270 | 160 | 14.70 | |
5K65 | 175 | 310 | 200 | 21.20 | |||
10K50 | 751732 | 170 | 155 | 285 | 160 | 18.90 | |
10K65 | 751733 | 200 | 175 | 310 | 200 | 28.20 |
