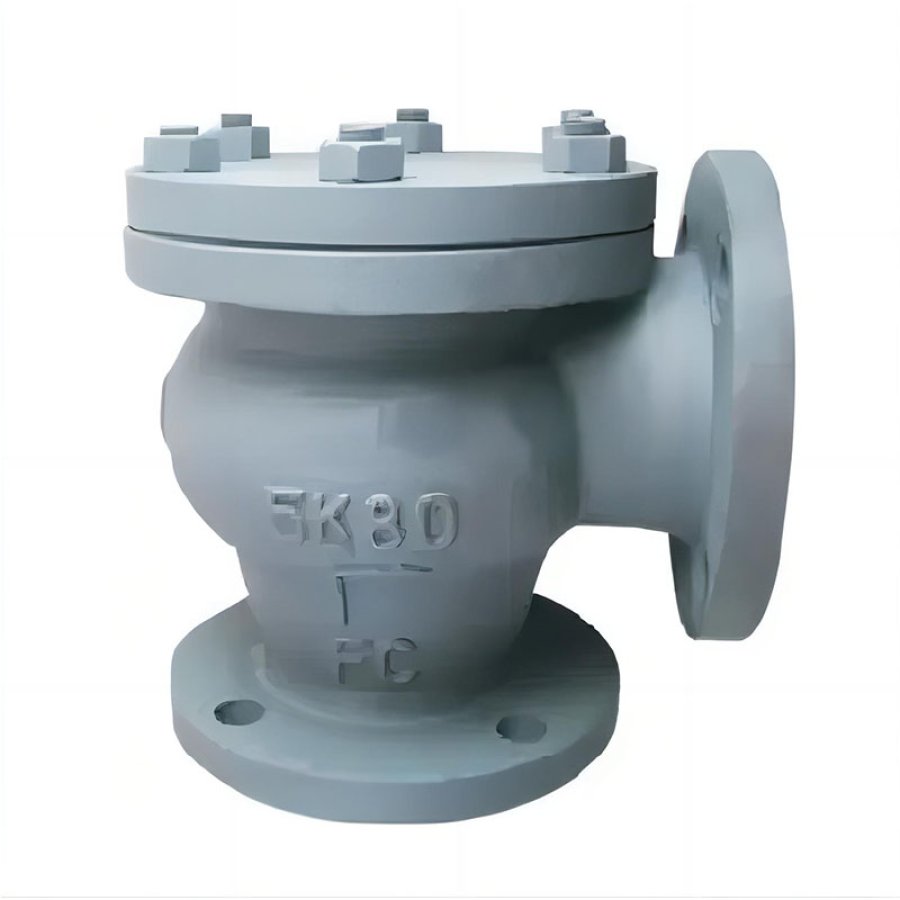

JIS F7359 5K10K Marine Cast Iron Lift Check Angle Valve
Product Details
Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |
JIS F7359 | 5K | 50~200 | Oil,Gas,Water |
Material of Main Parts:
Item | Parts Name | Material | Code |
1 | Body | Cast Iron | FC200 |
2 | Disc | Bronze/Stainless Steel | BC6/SS304/SS420 |
3 | Bonnet | Cast Iron | FC200 |
Main Data：
Size | IMPA CODE | L1 | D | H | Do | Weight kgs |
5K50 | 751321 | 130 | 77 | 140 | 9.50 | |
5K65 | 751322 | 155 | 81 | 160 | 13.80 | |
5K80 | 751323 | 180 | 84 | 190 | 18.90 | |
5K100 | 751324 | 200 | 96 | 215 | 25.60 | |
5K125 | 751325 | 235 | 108 | 245 | 36.70 | |
5K150 | 751326 | 265 | 125 | 270 | 50.90 | |
5K200 | 320 | 157 | 335 | 95.00 |
