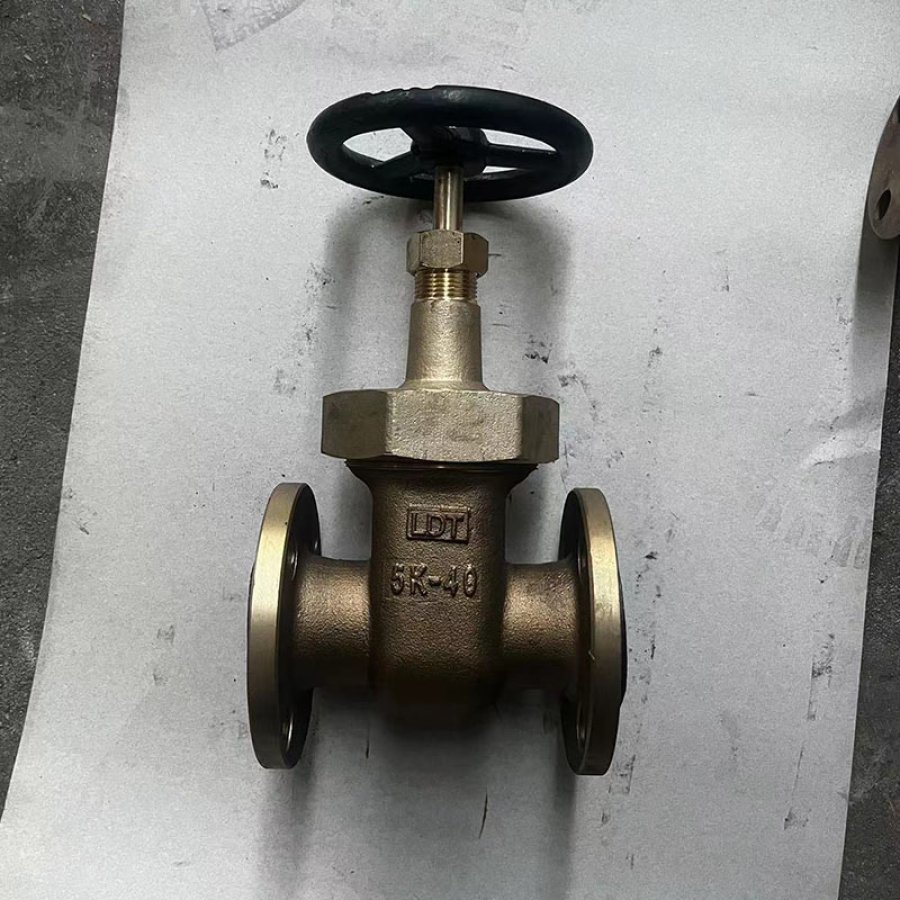

JIS F7367 5K Marine Cast Bronze Gate Valve
TECHNICAL FEATURES:
Marine Bronze Gate Valve JIS 7367 is rising stem type gate valve.
Design Standard: JIS F7367-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.7Mpa
Flange size as per JIS B2220 - 5K
Product Details
Main Material:
Body: Bronze (BC6)
Bonnet: Bronze (BC6)
Disc: Bronze (BC6)
Stem: Brass (C3771BD)
Gasket: non-asbestos

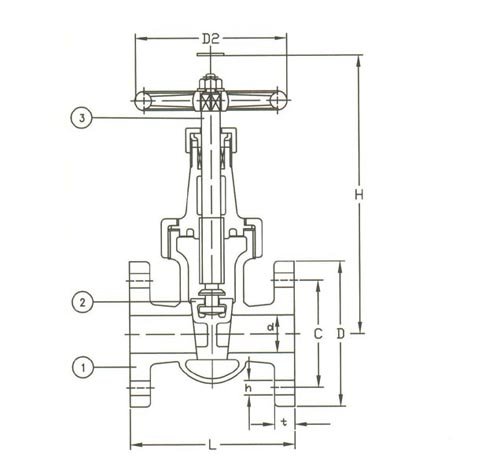

Main Size List(mm):
IMPA CODE | Size | L | D | C | No of Bolt Hole | h | t | H | D2 |
750951 | 15 | 90 | 80 | 60 | 4 | 12 | 9 | 175 | 80 |
750952 | 20 | 100 | 85 | 65 | 4 | 12 | 10 | 200 | 100 |
750953 | 25 | 110 | 95 | 75 | 4 | 12 | 10 | 220 | 125 |
750954 | 32 | 130 | 115 | 90 | 4 | 15 | 12 | 250 | 125 |
750955 | 40 | 140 | 120 | 95 | 4 | 15 | 12 | 290 | 140 |
