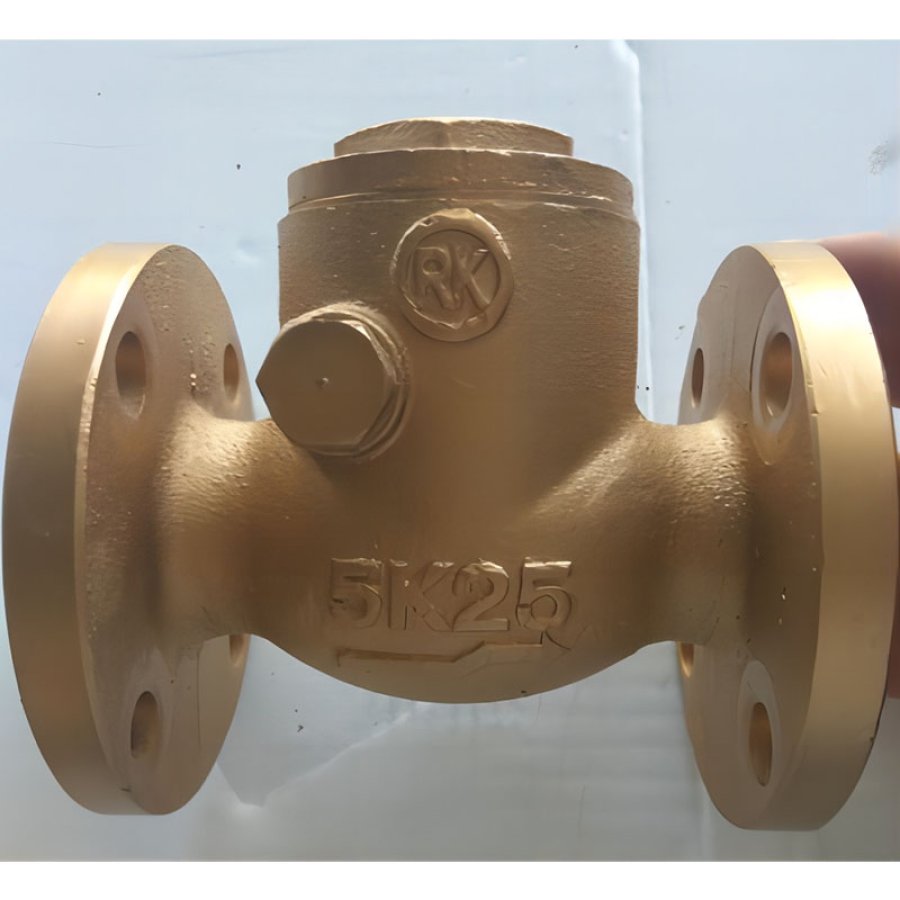

JIS F7371 5K10K Swing Check valve
Product Details
Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |
JIS F7371 | 5K | 25~40 | Sea Water.Fresh Water |

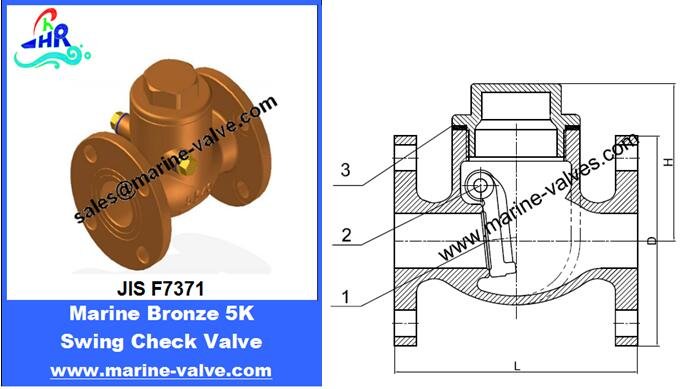

Material of Main Parts:
Item | Parts Name | Material | Code |
1 | Body | Cast Bronze | BC6 |
2 | Disc | Bronze | BC6 |
3 | Gasket | Graphite | |
4 | Bonnet | Cast Bronze | BC6 |
Main Data：
Size | IMPA CODE | L | D | H | Do | Weight kgs |
5K25 | 751401 | 95 | 69 | 2.24 | ||
5K32 | 751402 | 115 | 75 | 3.07 | ||
5K40 | 751403 | 120 | 89 | 4.34 | ||
5k50 | 751404 | 130 | 97 | 9.06 |
