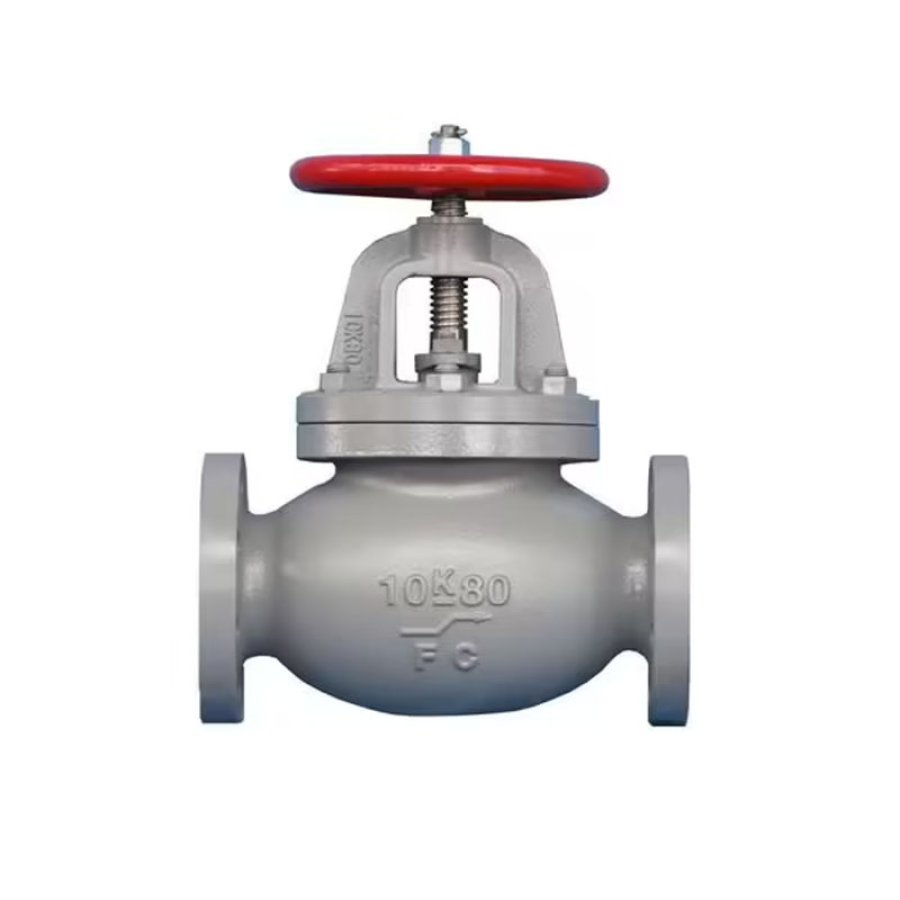

Marine Cast Iron Screw Down Check Globe Valve also can be called as Marine Cast Iron SDNR Valve or SDNR Globe Valve. It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.
Design Standard: JIS F7375-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body-2.1Mpa, Seat-1.54Mpa
Flange size as per JIS B2220 -10K
* The standard one is without indicator, if the customer needs the indicator for the SDNR Valve, pls state when inquiry or order.
Main Material:
Body: Cast Iron (FC200)
Bonnet: Cast Iron (FC200)
Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)
Stem: C3771BD (Brass) or SUS403
Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Gasket: non-asbestos

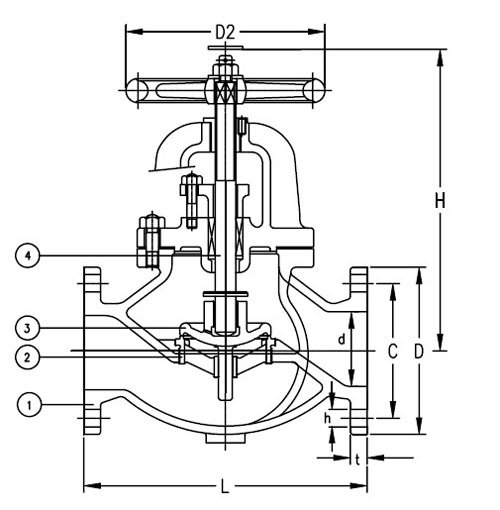

Main Size List(mm):
IMPA CODE | Size | L | D | C | t | H | No of Bolt | h | D2 |
751131 | 50 | 220 | 155 | 120 | 20 | 285 | 4 | 19 | 160 |
751132 | 65 | 270 | 175 | 140 | 22 | 310 | 4 | 19 | 200 |
751133 | 80 | 300 | 185 | 150 | 22 | 320 | 8 | 19 | 200 |
751134 | 100 | 350 | 210 | 175 | 24 | 370 | 8 | 19 | 250 |
751135 | 125 | 420 | 250 | 210 | 24 | 420 | 8 | 23 | 280 |
751136 | 150 | 490 | 280 | 240 | 26 | 470 | 8 | 23 | 315 |
751137 | 200 | 570 | 330 | 290 | 26 | 555 | 12 | 23 | 355 |
751137 | 250 | 740 | 400 | 355 | 30 | 680 | 12 | 25 | 450 |
751137 | 300 | 840 | 445 | 400 | 32 | 770 | 16 | 25 | 500 |
