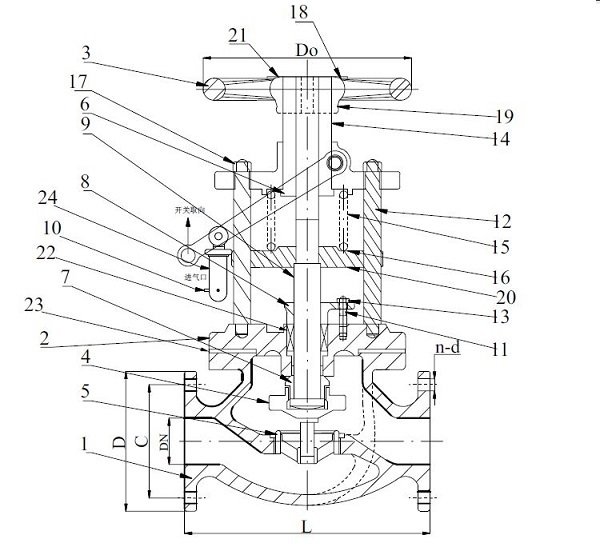

Marine Bronze Pneumatical Emergency Shut-Off Valve JIS F7399 5K:
Marine Emergency Shut-off Valve is used to shut off the fuel oil pipeline in emergency. It can be controlled by lever or air cylinder. The remote control is impelmented by air cylinder.
Operation type: Manual (Lever) or Pneumatic (air cylinder)
Design Standard: JIS F7399-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure:Body- 0.7Mpa, Seat-0.2Mpa,Seal for quick closing-0.1Mpa
Flange size as per JIS B2220 - 5K
Main Material:
Body: Bronze or Brass
Bonnet: Bronze or Brass
Seat: Brone or Brass
Disc: Brone or Brass
Stem: Brass (C3771BD)
Air Cylinder: Brass
Operation Spindle: SUS403
Operation Lever: SUS403
Handwheel: FC200 (Cast iron)
Gasket: non-asbestos
Main Size List (mm):
DN | d | L | D | C | Bolt Hole NO. | Bolt Hole Diameter | Flange thickness | H | D2 |
5K15 | 15 | 100 | 80 | 60 | 4 | 12 | 10 | 265 | 120 |
5K20 | 20 | 110 | 85 | 65 | 4 | 12 | 10 | 265 | 120 |
5K25 | 25 | 120 | 95 | 75 | 4 | 12 | 10 | 265 | 120 |
5K40 | 40 | 160 | 120 | 95 | 4 | 15 | 12 | 310 | 140 |
5K50 | 50 | 210 | 130 | 105 | 4 | 15 | 14 | 335 | 160 |
5K65 | 65 | 250 | 155 | 130 | 4 | 15 | 14 | 395 | 180 |
5K80 | 80 | 280 | 180 | 145 | 4 | 19 | 18 | 420 | 180 |
10K15 | 15 | 110 | 95 | 70 | 4 | 15 | 12 | 265 | 120 |
10K20 | 20 | 120 | 100 | 75 | 4 | 15 | 14 | 265 | 120 |
10K25 | 25 | 130 | 125 | 90 | 4 | 19 | 14 | 265 | 120 |
10K40 | 40 | 180 | 140 | 105 | 4 | 19 | 16 | 310 | 140 |
10K50 | 50 | 220 | 155 | 120 | 4 | 19 | 16 | 335 | 160 |
10K65 | 65 | 270 | 175 | 140 | 4 | 19 | 18 | 395 | 180 |
10K80 | 80 | 300 | 185 | 150 | 8 | 19 | 18 | 420 | 180 |

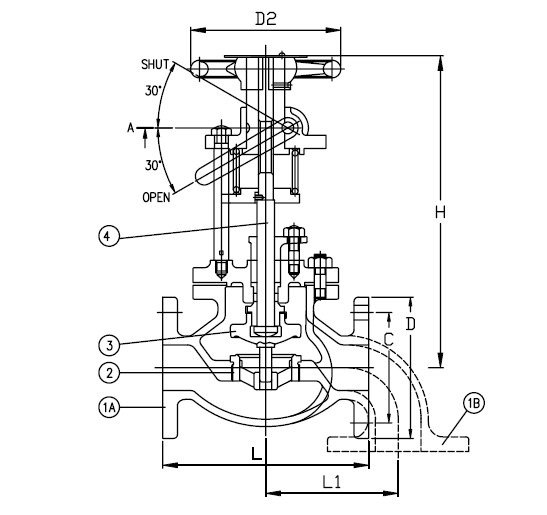

Marine Bronze Emergency Shut-Off Valve JIS F7399 5K:
Marine Emergency Shut-Off Valve is also called as Marine Quick Closing Valve.It is used to shut off the fuel oil/lubricatoin oil pipeline in emergency. It can controlled by lever or the air cylinder. Materical can be cast steel, bronze, nodular iron.
Operation type: Manual (Lever) or Pneumatically operated
Design Standard: JIS F7399-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure:Body- 0.7Mpa, Seat-0.2Mpa,Seal for quick closing-0.1Mpa
Flange size as per JIS B2220 - 5K
Main Material:
Body: Bronze or Brass
Bonnet: Bronze or Brass
Seat: Bronze or Brass
Disc: Bronze or Brass
Stem: Brass (C3771BD)
Operation Spindle: SUS403
Operation Lever: SUS403
Handwheel: FC200 (Cast iron)
Gasket: non-asbestos
Main Size List(mm):
DN | d | L | D | C | Bolt Hole NO. | Bolt Hole Diameter | Flange thickness | H | D2 |
5K15 | 15 | 100 | 80 | 60 | 4 | 12 | 10 | 265 | 120 |
5K20 | 20 | 110 | 85 | 65 | 4 | 12 | 10 | 265 | 120 |
5K25 | 25 | 120 | 95 | 75 | 4 | 12 | 10 | 265 | 120 |
5K40 | 40 | 160 | 120 | 95 | 4 | 15 | 12 | 310 | 140 |
5K50 | 50 | 210 | 130 | 105 | 4 | 15 | 14 | 335 | 160 |
5K65 | 65 | 250 | 155 | 130 | 4 | 15 | 14 | 395 | 180 |
5K80 | 80 | 280 | 180 | 145 | 4 | 19 | 18 | 420 | 180 |
10K15 | 15 | 110 | 95 | 70 | 4 | 15 | 12 | 265 | 120 |
10K20 | 20 | 120 | 100 | 75 | 4 | 15 | 14 | 265 | 120 |
10K25 | 25 | 130 | 125 | 90 | 4 | 19 | 14 | 265 | 120 |
10K40 | 40 | 180 | 140 | 105 | 4 | 19 | 16 | 310 | 140 |
10K50 | 50 | 220 | 155 | 120 | 4 | 19 | 16 | 335 | 160 |
10K65 | 65 | 270 | 175 | 140 | 4 | 19 | 18 | 395 | 180 |
10K80 | 80 | 300 | 185 | 150 | 8 | 19 | 18 | 420 | 180 |

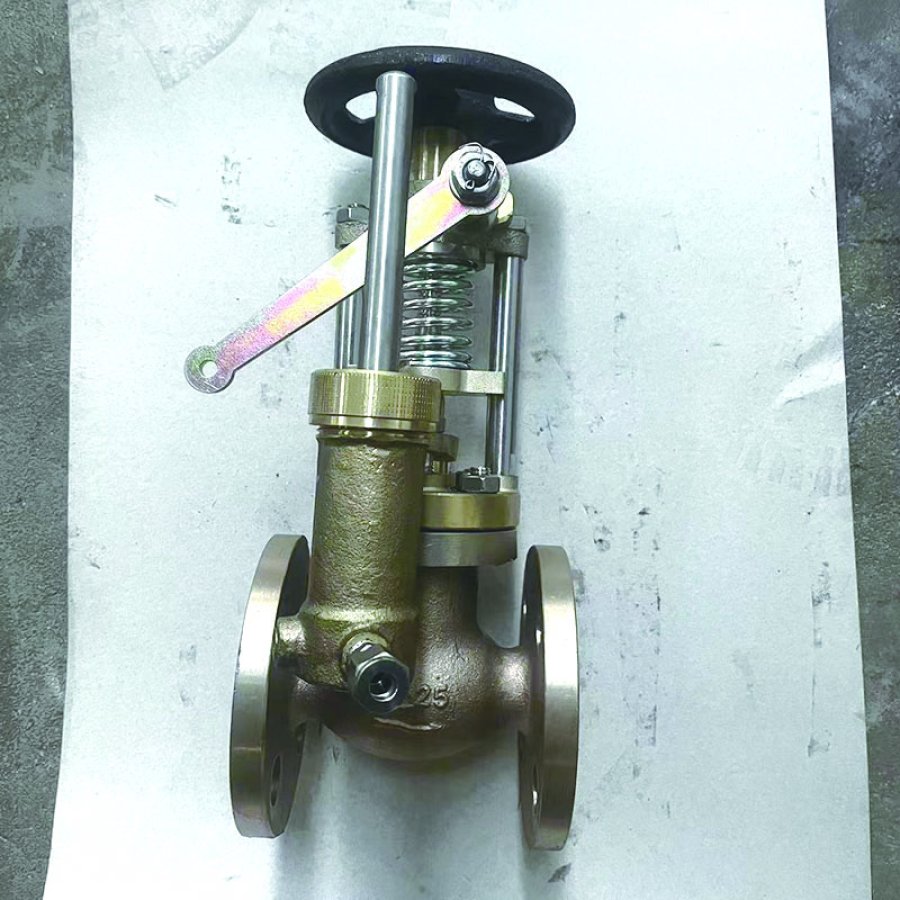

Marine Bronze Pneumatic Quick Closing Valve JIS F7399 10K:
Marine Bronze Pneumatic Emergency Quick Closing Valve JIS F7399 is used to shut off the fuel oil/lubricatoin oil pipeline in emergency with the air cylinder. It is controlled remotedy by the air cylinder.
Design Standard: JIS F7399-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure:Body- 0.7Mpa, Seat-0.2Mpa,Seal for quick closing-0.1Mpa
Flange size as per JIS B2220 - 10K
Main Material:
Body: Bronze or Brass
Bonnet: Bronze or Brass
Seat: Bronze or Brass
Disc: Bronze or Brass
Stem: Brass (C3771BD)
Air Cylinder: Brass
Operation Spindle: SUS403
Operation Lever: SUS403
Handwheel: FC200 (Cast iron)
Gasket: non-asbestos
Main Size List(mm):
DN | d | L | D | C | Bolt Hole NO. | Bolt Hole Diameter | Flange thickness | H | D2 |
10K15 | 15 | 110 | 95 | 70 | 4 | 15 | 12 | 265 | 120 |
10K20 | 20 | 120 | 100 | 75 | 4 | 15 | 14 | 265 | 120 |
10K25 | 25 | 130 | 125 | 90 | 4 | 19 | 14 | 265 | 120 |
10K40 | 40 | 180 | 140 | 105 | 4 | 19 | 16 | 310 | 140 |
10K50 | 50 | 220 | 155 | 120 | 4 | 19 | 16 | 335 | 160 |
10K65 | 65 | 270 | 175 | 140 | 4 | 19 | 18 | 395 | 180 |
10K80 | 80 | 300 | 185 | 150 | 8 | 19 | 18 | 420 | 180 |
